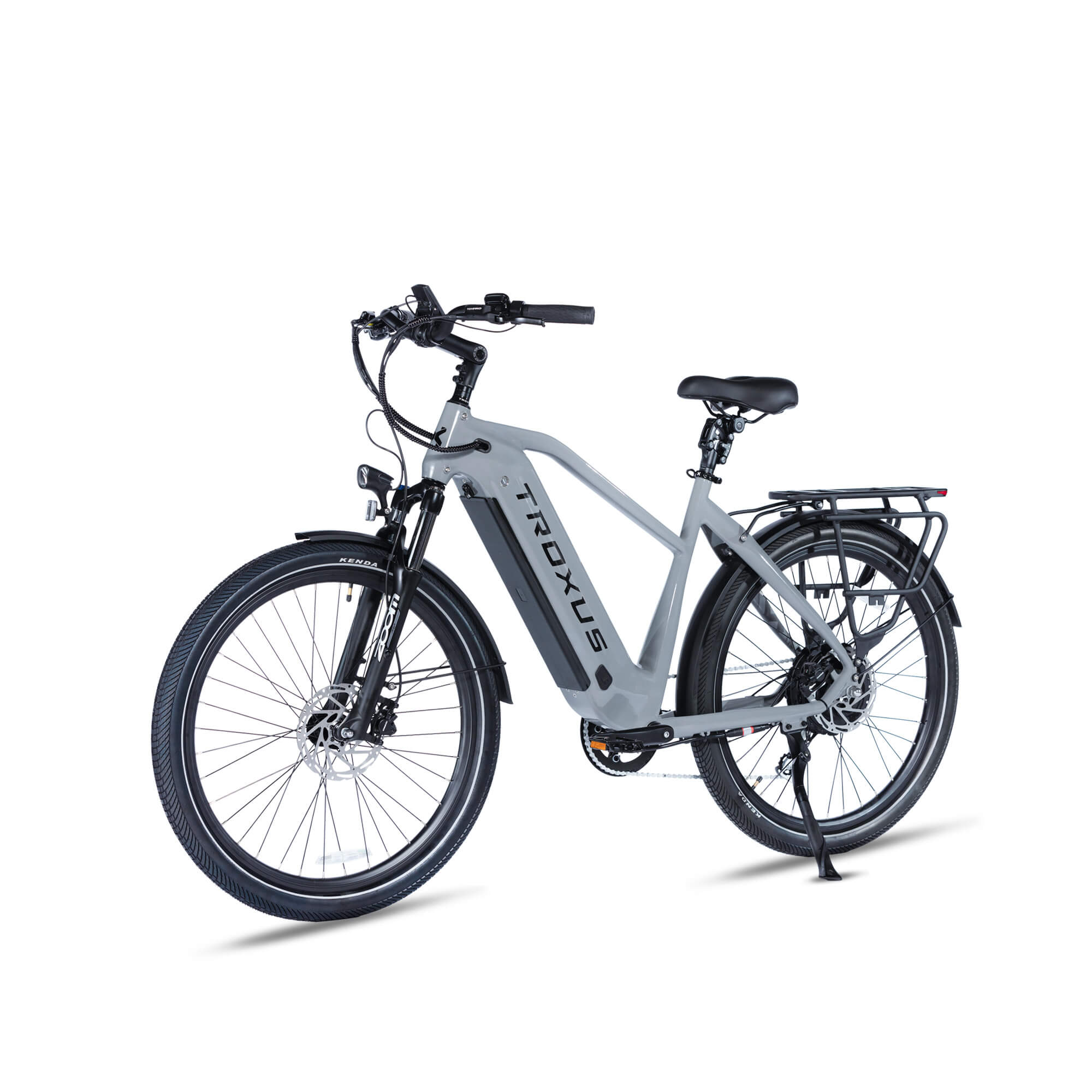

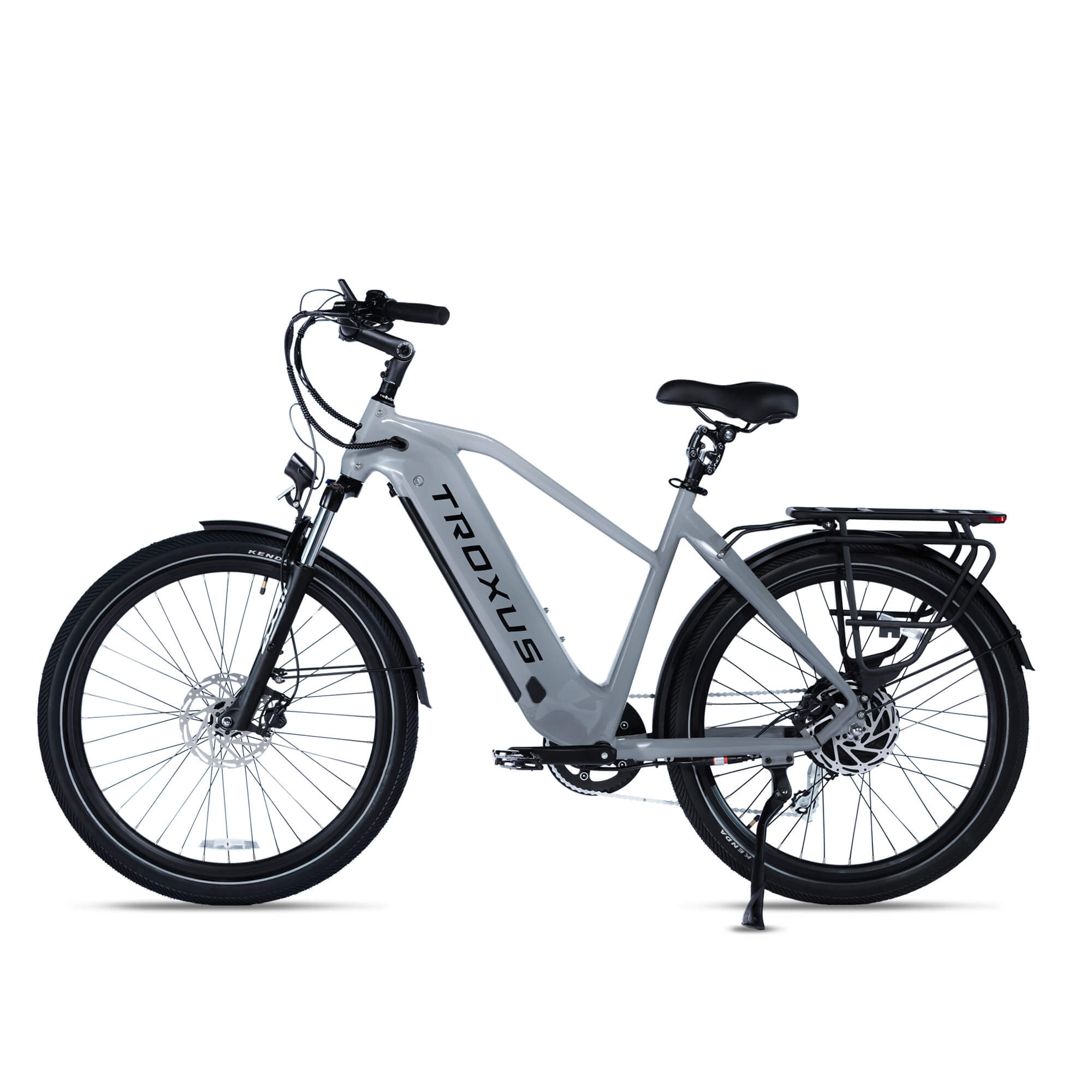

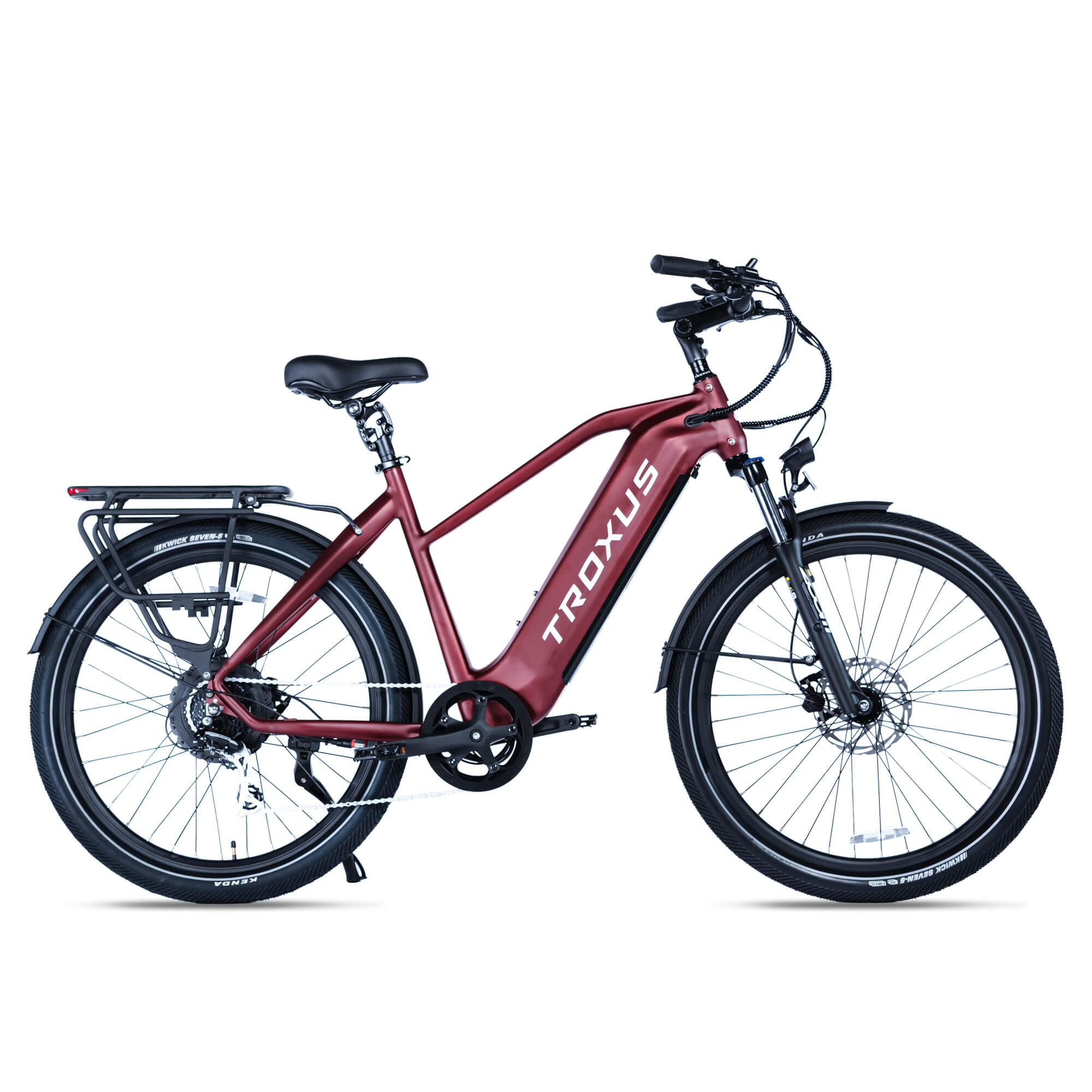

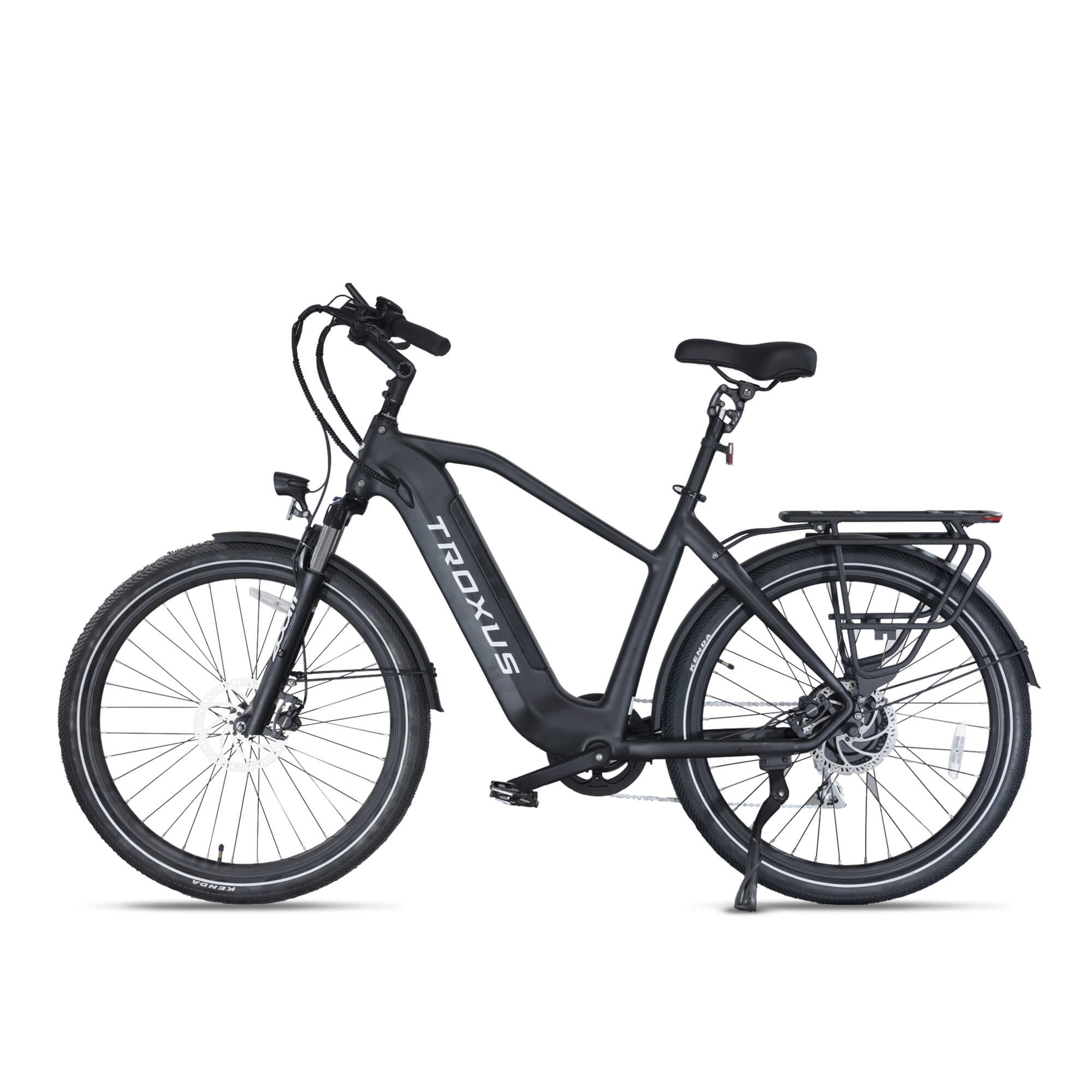

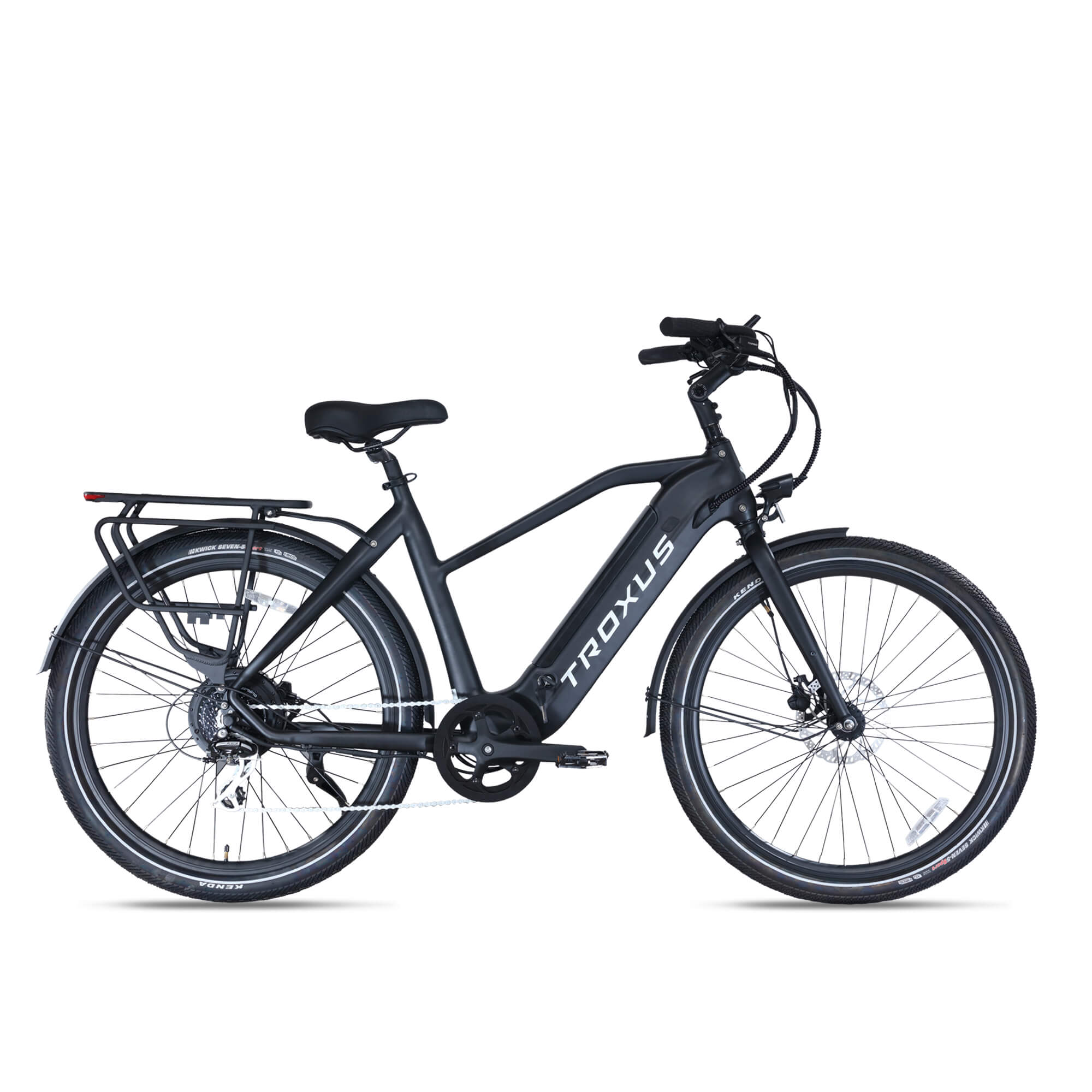

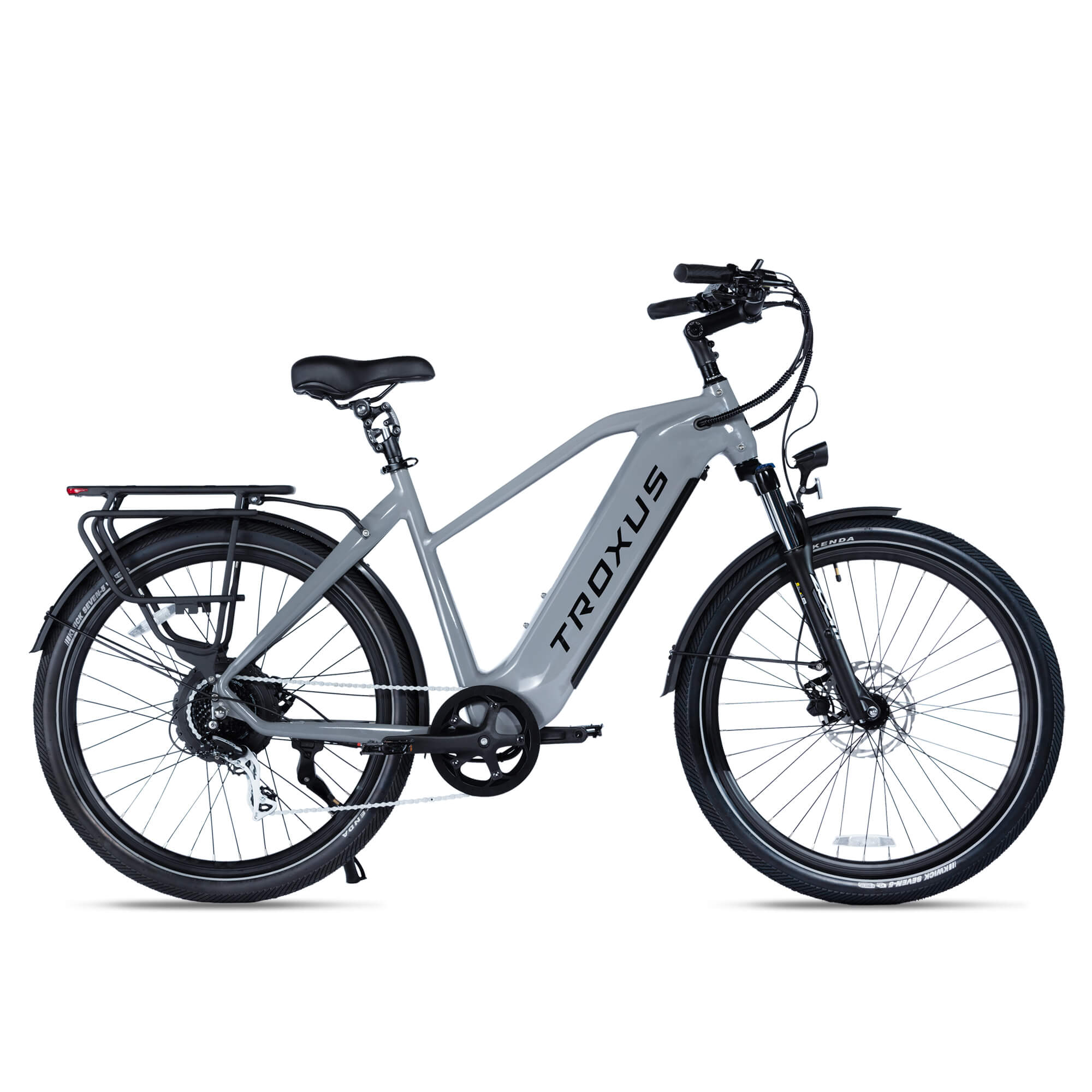

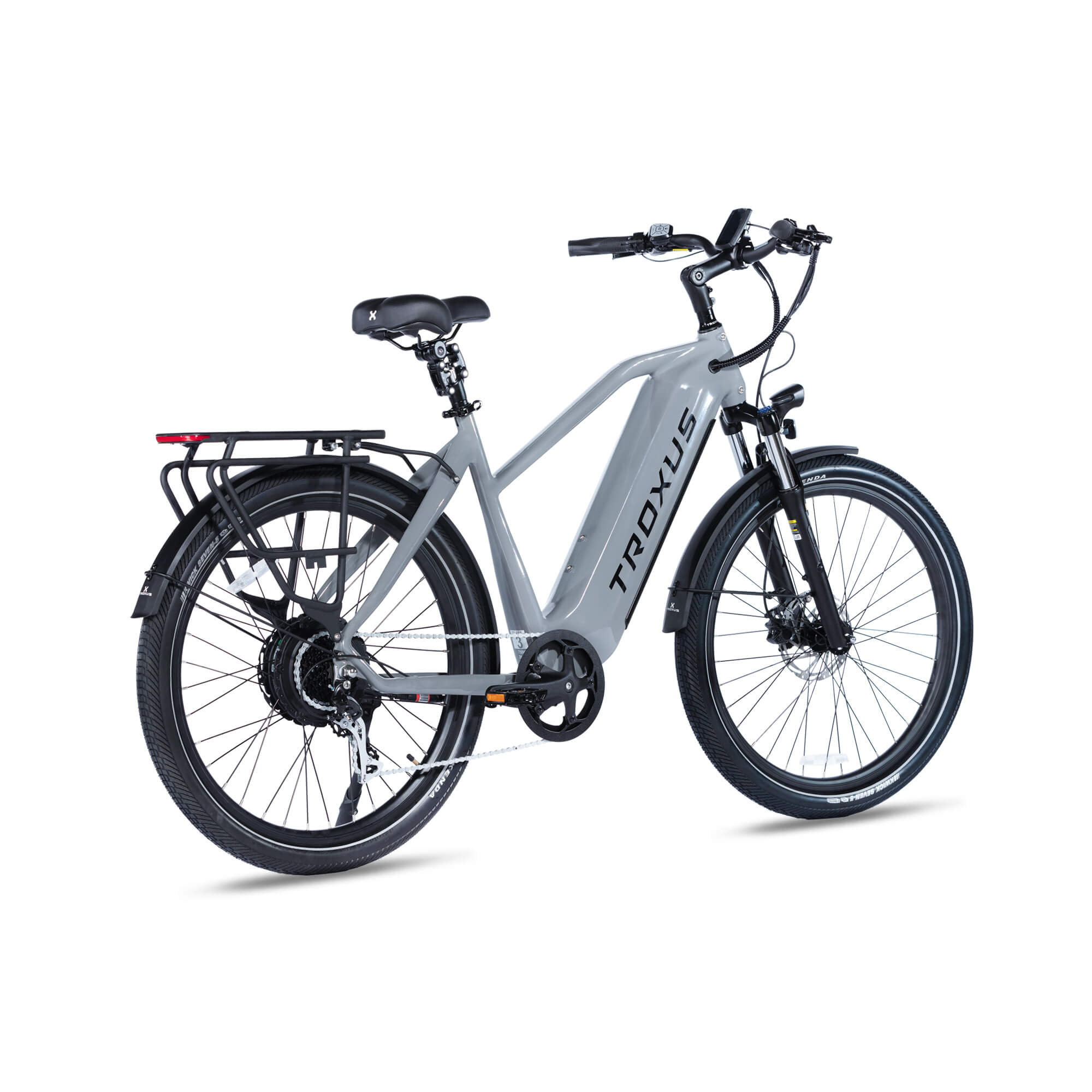

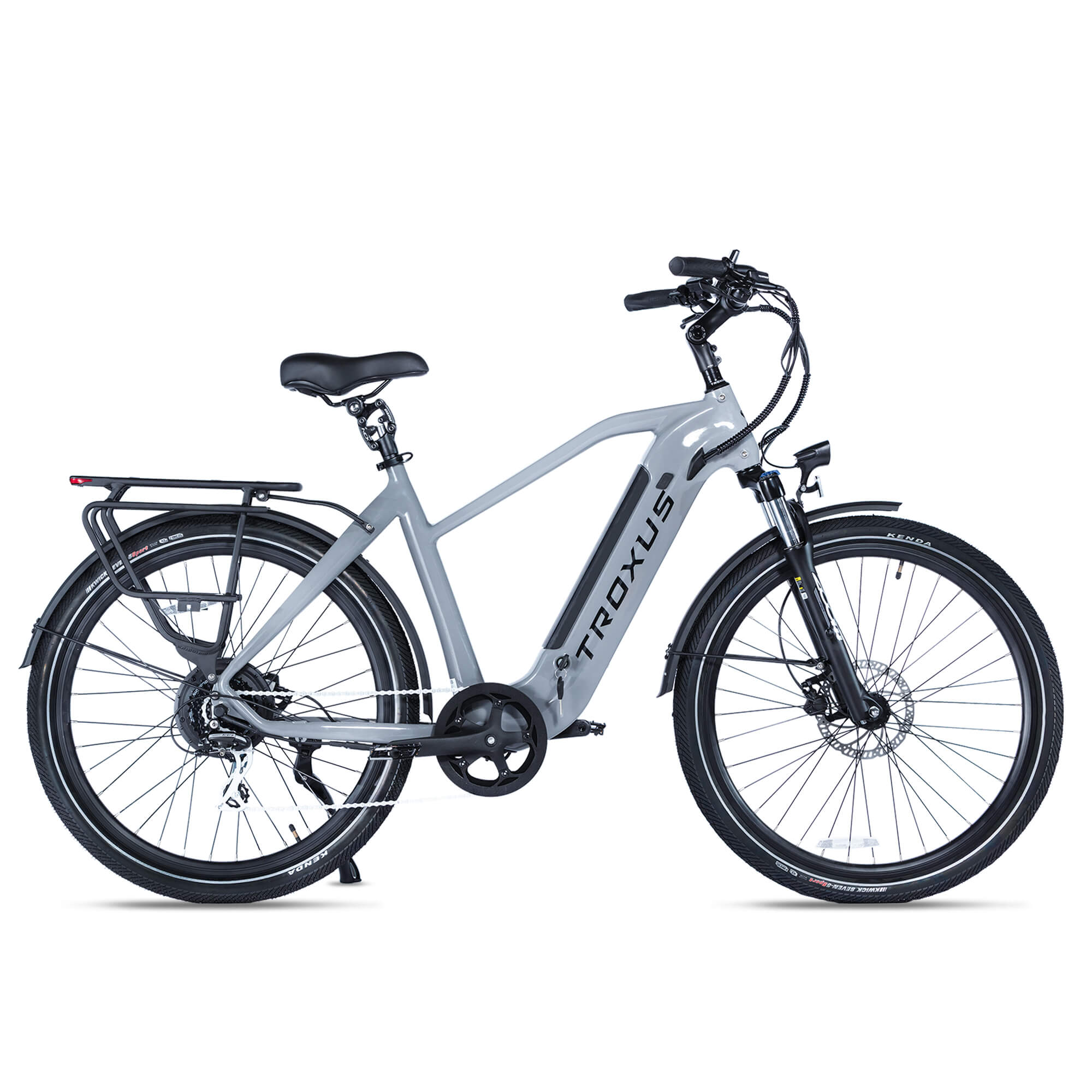

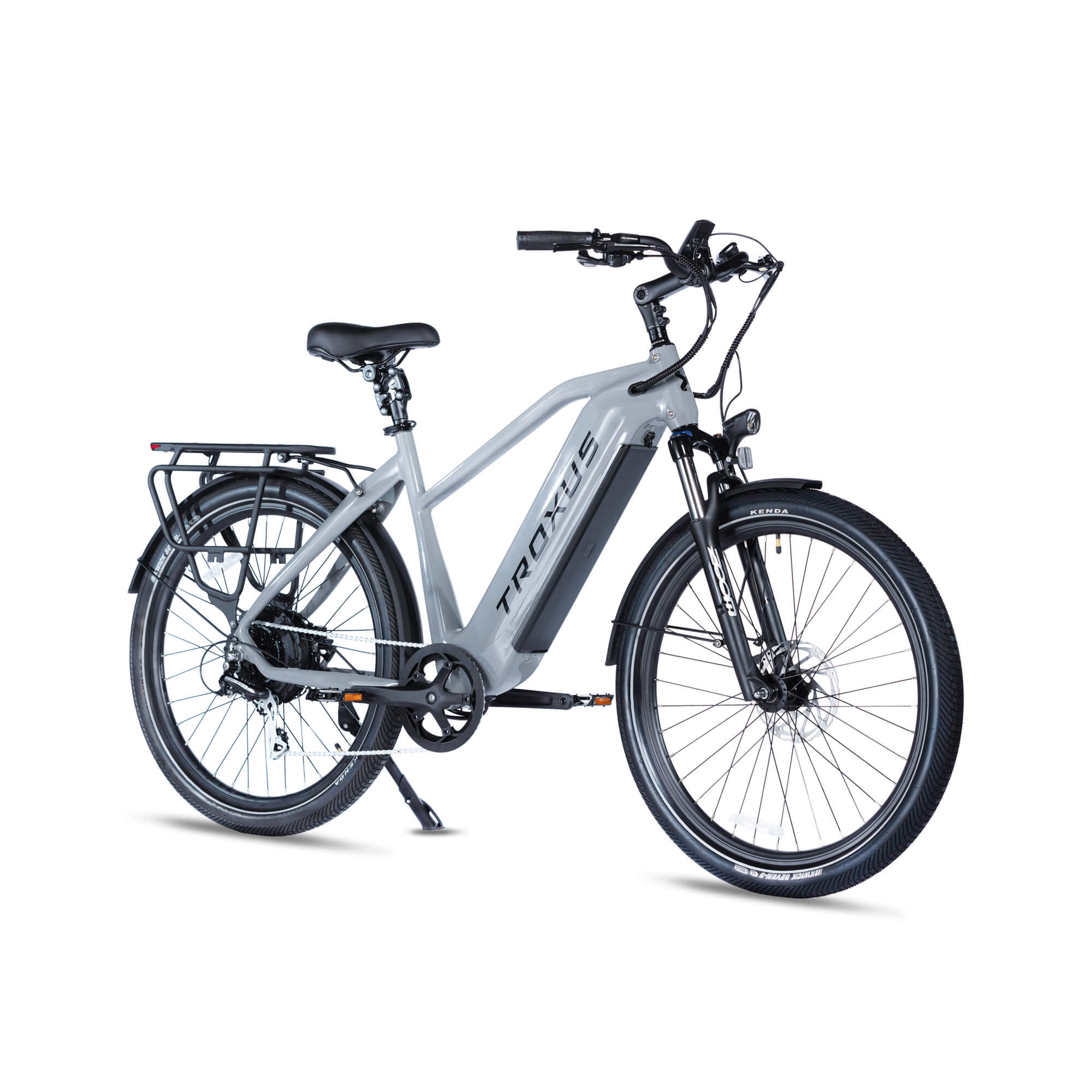

Trax Commuter E-Bike

Name: Trax Commuter E-Bike
Brand: TROXUS
SKU: 10870100132
Price: 2799.0 USD
Availability: InStock
Rating: 4.91 (11 reviews)

$2,799.00 USD

Interest-free installments:

Color:

Battery:

Frame:

Variant

Product Locator by Locally

Our sales team and technicians will answer your questions within 1-2 business days. Our goal is customer satisfaction. We will do our best to understand and meet our customer's requirements at all times.

Available:
Phone: Mon-Fri 9am-5pm PT
Online Chat: Mon-Fri 9am-5pm PT

	Address: 2485 Coral St Vista CA, 92081, United States
	Pre-/After-sales: support@troxusmobility.com Dealer: partner@troxusmobility.com Amazon: amazon@troxusmobility.com Cooperation Inquiries: pr@troxusmobility.com
	Phone No:888-905-8243

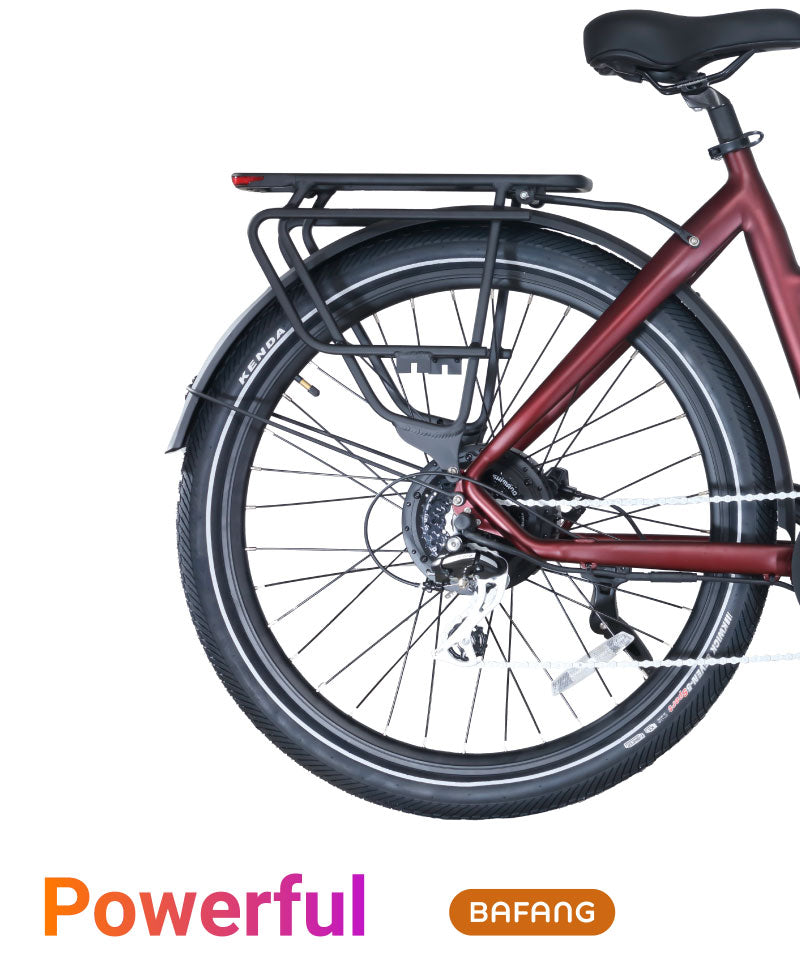

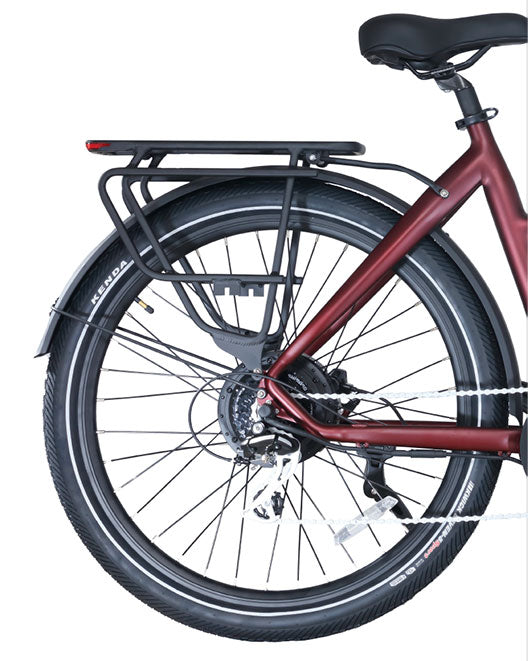

BAFANG® 500W/750W Motor Power

Smooth running and better handling. The rear hub motor runs smoothly and quietly, and the direct power distribution also makes the bike easier to handle, greatly improving rider safety. Rear hub drive bikes have much better traction than ones with front wheel drive due to better weight distribution. This is especially important for those looking for an electric mountain bike as they are more likely to go off-road when the ground is less firm and therefore need a better grip.

500W/750W hub motors are among the most ad-vanced and powerful hub motors in their class Though compact, they offer 65 to 75 N.m of max motor torque for optimum hill climbing, range, and speed. The thumb throttle provides easy speed and power control. The Bafang motor is what helps your Trax climb up to 28mph, when assisting your pedaling efforts.

SAMSUNG® 15A To 30A Battery

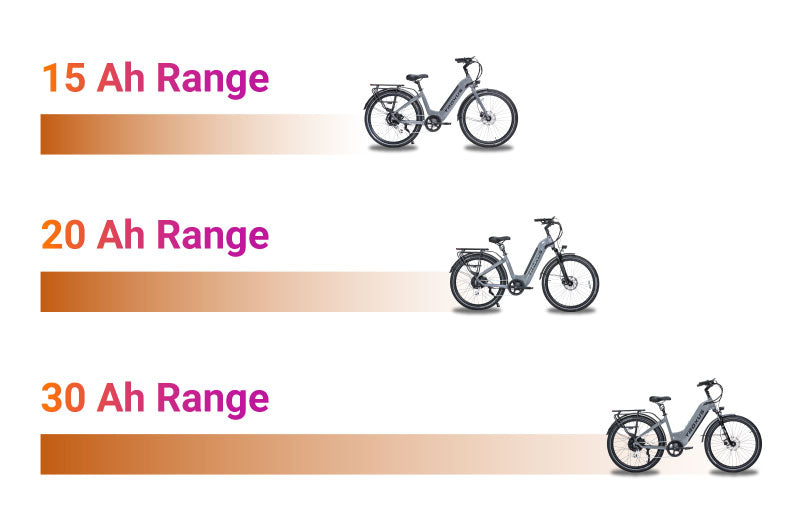

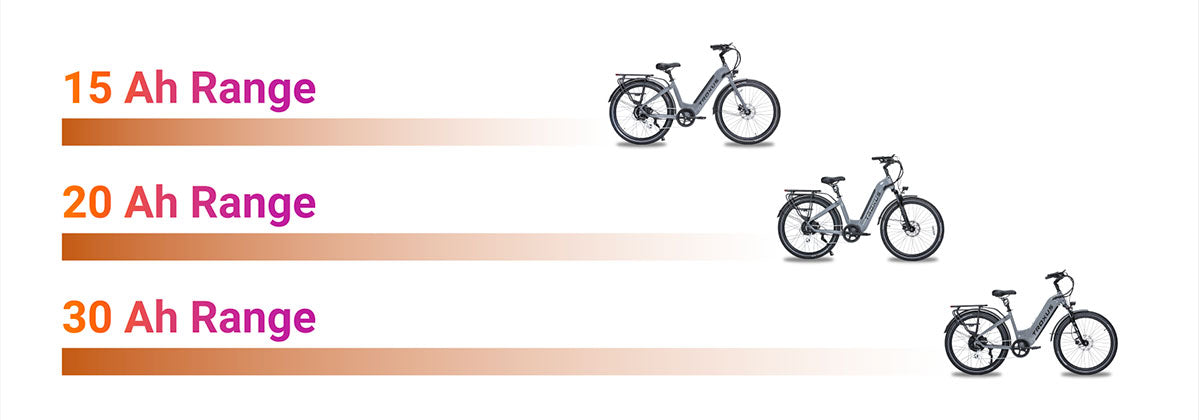

The range, stability, and safety of Trax e-bikes are all effectively increased by these 720Wh/960Wh/1440Wh removable lithium-ion batteries with Samsung cells. These batteries have improved discharge and charge efficiency, longer life span, and the ability to deep cycle while maintaining power. With pedal assistance, a single charge can take you from 55 to 110 miles. Best of all, after 1000 charges, the battery will still retain 80% of its capacity.

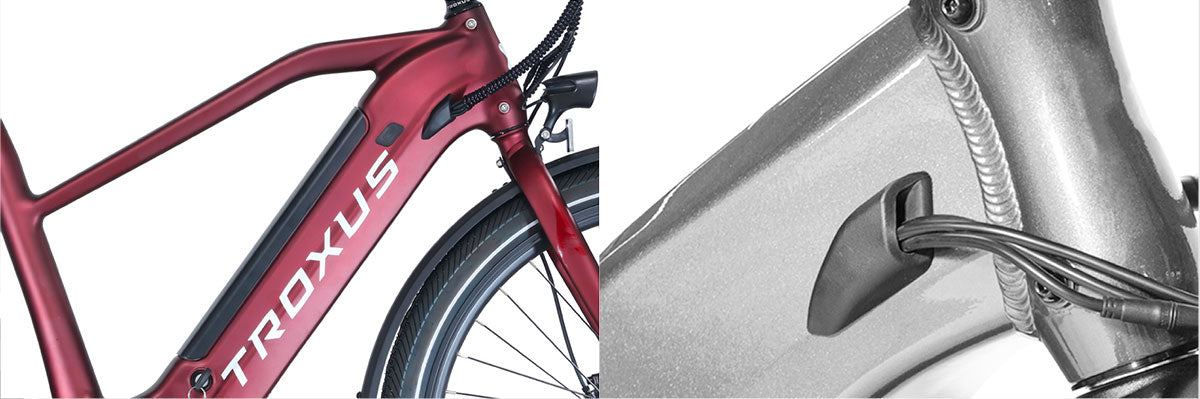

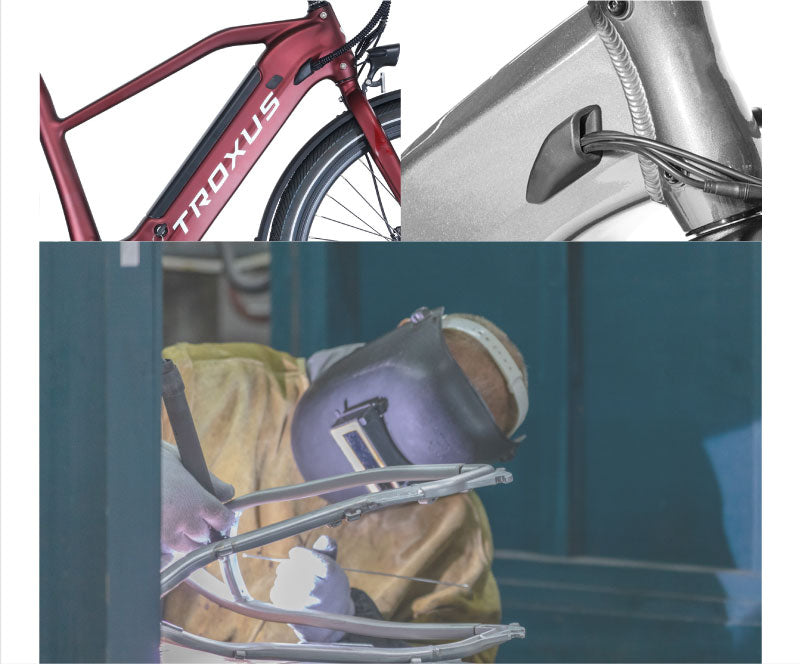

Smooth Welding

Smooth welding is a mark of superior craftsmanship. A smooth welded frame is structurally strong with functional elegance, and verifies the high-end quality. Every rider deserves a beautiful bicycle to carry them on their daily commute, to help express their identity.

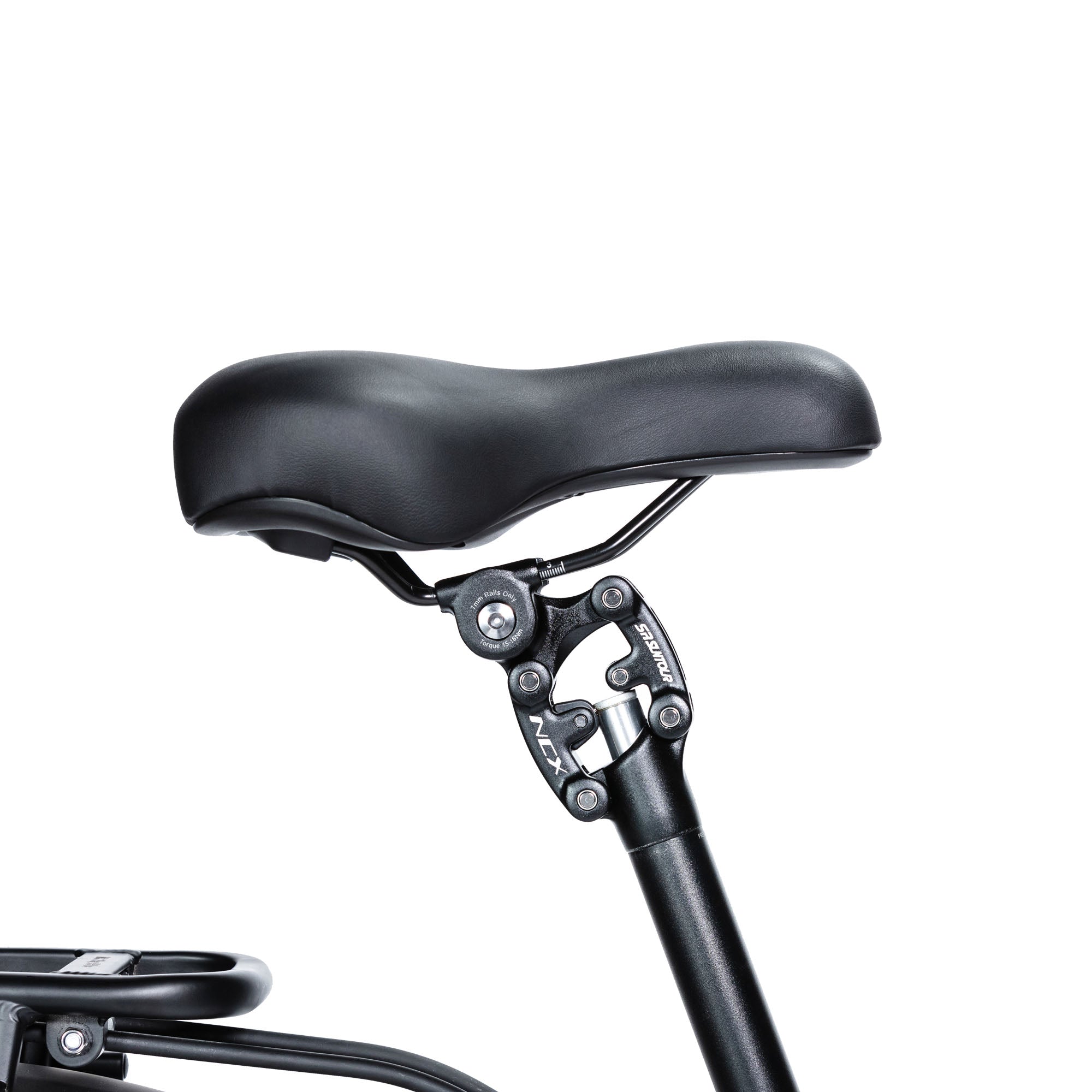

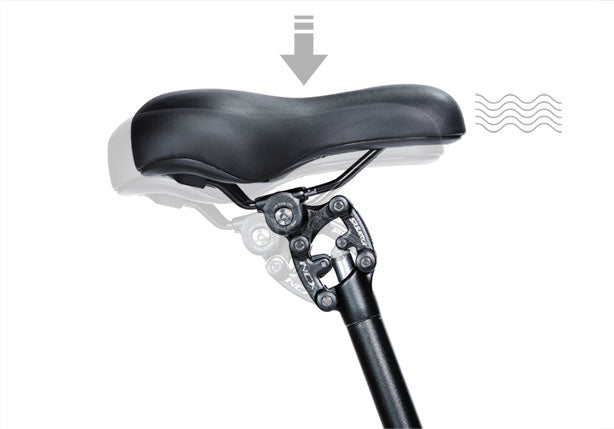

SR Suntour® Suspension Seatpost

The suspension seatpost can also extend the amount of time you’re comfortable in the saddle by absorbing persistent small bumps and vibrations that come from gravel roads, double tracks, and trails. This makes it an especially compelling component upgrade for lengthy bikepacking trips and long-distance touring.

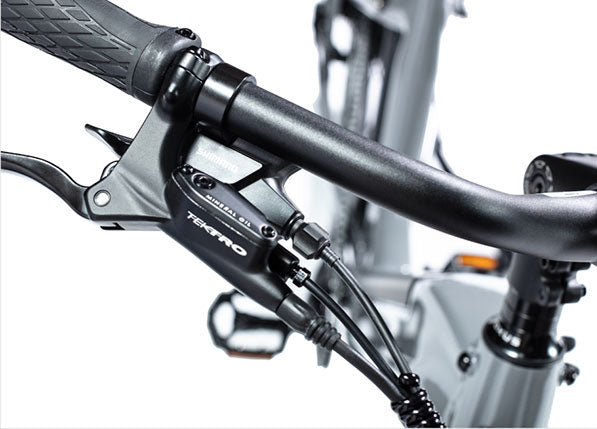

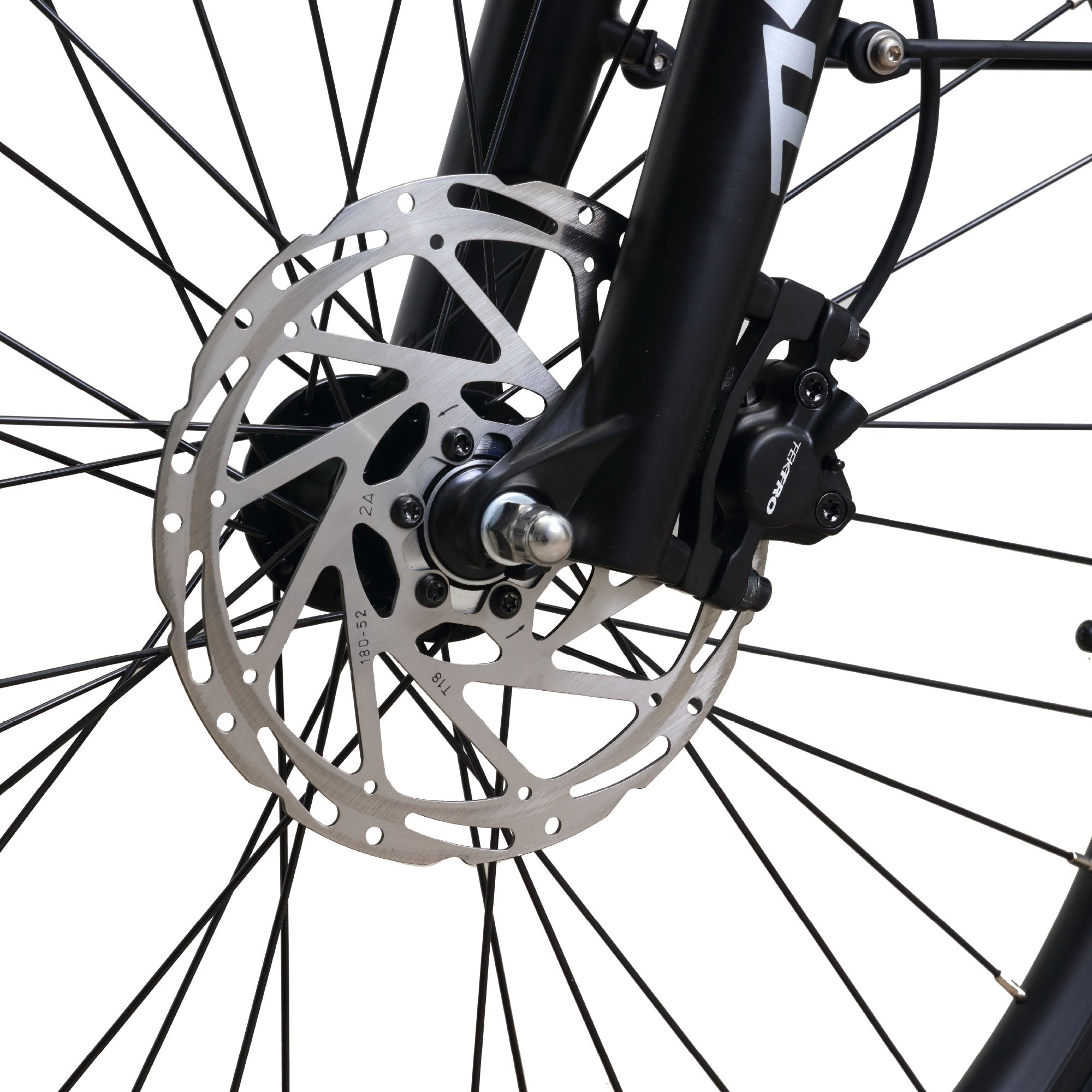

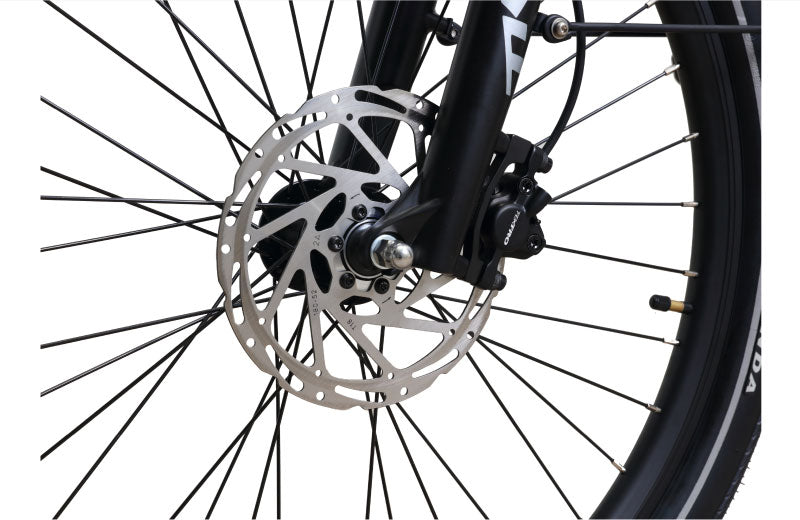

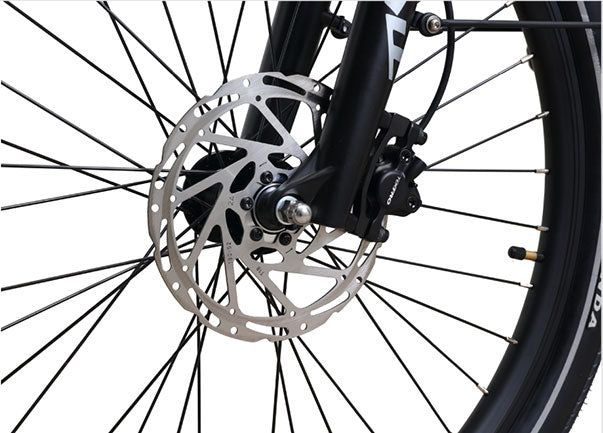

TEKTRO® HYDRAULIC BRAKES

Tektro® Hydraulic brakes provide superior braking performance and durability. With proper maintenance, braking power remains at brand-new levels for up to 5 years. These brakes provide powerful braking in all conditions, and easy modulation for consistent control.

SHIMANO® 8-SPEED SHIFTER

The Shimano® 8-speed gear shifting system offers you more choice while riding in a variety of conditions and terrain. Paired with the pedal-assist system, you can always ﬁnd the speed that suits your journey. Using this system accurately can increase the range of a single charge by up to 15%.

SPECIFICATION

MOTOR

Bafang® 48V/750W Hub-Drive Motor

THROTTLE

Thumb Throttles on Handlebars

DISPLAY

Colorful screen with USB charging, LCD Smart Easy Read Display with Backlight, Waterproof IP67

SPEED

Pedal Assist top speed at 28mph;Throttle top speed at 20mph

BATTERY

Samsung® 48V/15-30A Battery(720Wh-1440Wh),5000mAh single cell capacity

SENSORS

Cadence Sensor

PEDAL ASSIST

0~5 level pedal assist

CHARGER

15A Version: MDN® 54.6V 2A smart charger;

20A&30A Version:MDN® 54.6V 4.5A smart charger:

DoE&BC certificated,6-8 hours full charging

RANGE

55-110 Miles Average

FRAME

6061 Aluminum Alloy Frame
alloy, 3 Frame Sizes

Net WEIGHT

15A Rgd: 64.0 lbs

15A Sus: 68.5 lbs

20A Sus: 76.5 lbs

30A Sus: 80.5 lbs

PEDALS

9/16″Alloy Platform with CPSC/BS reflectors

FORK

15A Version: Zoom® Front Suspension Fork, 65mm travel

20A&30A Version: Uding® Front Suspension Fork, 80mm travel

WEIGHT LIMIT

Standard Weight Limit 275LB

Maximum Weight Limit 353LB

KICKSTAND

Heavy duty aluminum

BOTTOM BRACKET

Gineyea® Square Taper, Sealed

CRANKSET

Wheel Top® 170mm w/46T, 3D forged alloy, Strong and rigid

REAR DERAILLEUR

Shimano® 8-speed Derailleur System

CASSETTE

Shimano®12-32T, 8 Speed Cassette

SHIFT LEVER

8 Speed

BRAKES

Tektro® Hydraulic Brake

CHAIN

KMC® chain, top rust prevention EPT

RIM

Powercir® Double Wall Aluminum 36h Front & Rear

SPOKES

Front wheel: black stainless 13 Gauge
Rear wheel: black stainless 12 Gauge

RACK

Alloy with reflectors 80 pound capacity

FENDERS

Alloy Full Coverage

TIRES

15A Version: Kenda® 27.5"x2.2" w/ Thorn proof tubes, Reflective Sidewalls

20A&30A Version: Kenda® 27.5"x2.4" w/ Thorn proof tubes, Reflective Sidewalls

SADDLE

Troxus

SEATPOST

15A Rgd Version: Forged Alloy, 30.9*350mm， 2 Bolt Clamp

Other Versions:

SR Suntour® Suspension Seatpost

STEM

Zoom® Adjustable Stem, Threadless 31.8mm

SEAT CLAMP

Quick release

HANDLEBARS

Zoom® Aluminum 31.8 with 15 Degree Sweptback

LIGHTS

High intensity front and rear brake light

GRIPS

Ergonomic Comfort

PACKAGED

Above all accessories are included

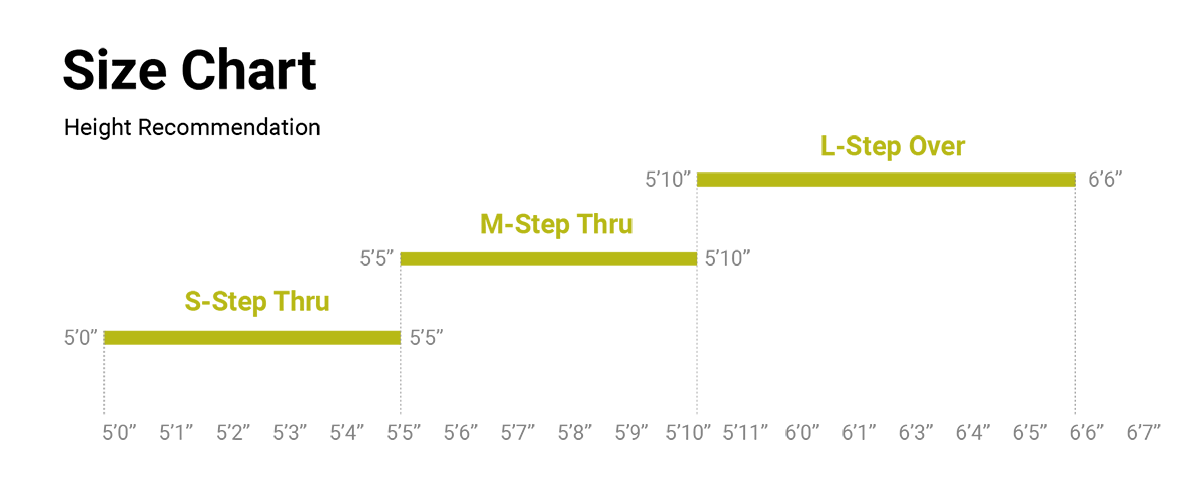

Sizing table
Frame size number	S	M	L
Wheel size	27.5"*2.2	27.5"*2.2	27.5"*2.2
A-Seat tube	430	490	530
B-Seat tube angle	70"	70"	70"
C-Head tube length	150	150	150
D-Head angle	69°	69°	69°
E-Effective top tube	622.5	622.5	630.5
F-Bottom bracket height	296	296	296
G-Bottom bracket drop	55	55	55
H-Chainstay length	480	480	480
I-Offset	42	42	42
J-Trail	89.75	89.75	89.75
K-Wheelbase	1134.5	1134.5	1142.6
L-Standover			370.5
M-Frame reach	414.6	414.6	422.65
N-Frame stack	571	571	571

Sizing table
Frame size number	S	M	L
Wheel size	27.5"*2.2	27.5"*2.2	27.5"*2.2
A-Seat tube	430	490	530
B-Seat tube angle	70"	70"	70"
C-Head tube length	150	150	150
D-Head angle	69°	69°	69°
E-Effective top tube	621	621	629
F-Bottom bracket height	296	296	296
G-Bottom bracket drop	55	55	55
H-Chainstay length	480	480	480
I-Offset	42	42	42
J-Trail	89.75	89.75	89.75
K-Wheelbase	1134.5	1134.5	1142.6
L-Standover			421.5
M-Frame reach	392	392	400
N-Frame stack	629	629	629

Sizing table
Frame size number	S	M	L
Wheel size	27.5"*2.4	27.5"*2.4	27.5"*2.4
A-Seat tube	430	490	530
B-Seat tube angle	72"	72"	72"
C-Head tube length	150	150	150
D-Head angle	69°	69°	69°
E-Effective top tube	618	630	630
F-Bottom bracket height	299.5	299.5	299.5
G-Bottom bracket drop	55	55	55
H-Chainstay length	480	480	480
I-Offset	42	42	42
J-Trail	97.93	97.93	97.93
K-Wheelbase	1174.7	1174.7	1174.7
L-Standover			405
M-Frame reach	417	427	427
N-Frame stack	638.5	643	643

FAQ

Order and Payment
Returns and Refunds
Product/Service-Related

Order and Payment

How long does it take to arrive?

It doesn't take a long time to ship. And different place has different delivery time.

Returns and Refunds

Is it possible to open it and return the e-bike if I don't like it?

Yes, we provide a 15-day return policy and a two-year warranty. If you are not satisfied with the product, you can return it within 15 days. Please NOTE that for a return, it's important to ensure that the original packaging is in good condition and the riding mileage should not exceed 10 miles. For more detailed warranty information, please refer to the product page, or feel free to contact our customer support team for assistance.

Product/Service-Related

What is the battery range of this e-bike?

The battery range varies depending on several factors, but typically, you can travel 30 to 60 miles on a single charge. Please note that riding conditions, speed, and payload can affect the range.

How do I clean/maintain this ebike?

It is recommended to keep the tires inflated, lubricate the chain, and perform periodic brake checks. Additionally, the battery should be charged and stored properly to maintain performance. For more information, you can check out our Help Center.

Do I need a driver's license or registration to ride this e-bike?

In most areas, a driver's license or registration is not required to ride an e-bike, but regulations vary by region. Please check the regulations in your area before making a purchase.

How do I charge the battery?

The battery can be charged by plugging the provided charger into a standard electrical outlet. Charging time depends on the battery capacity and its current state, but typically takes several hours.

Are there accessories available for upgrades or personalization?

Yes, we offer a variety of accessories and upgrade options, such as front baskets, rear racks, lights, locks, and more, to cater to different riders' needs.

Is this E-bike waterproof?

Yes, it is IPX5. But it's not suggested to ride in the rain.

How do I know if this ebike is suitable for me?

You can find information about recommended rider heights on our product details page. Additionally, we offer free test rides at our physical locations. You can find the specific test ride locations on our 'test ride' page.

Got my new trax commuter

1st ride today . Had 20-30 mph winds so not a fair review for any bike. No complaints at all 30AH battery maintained over 20mph in those winds so very happy.

Very Impressed!

I have never owned or even ridden an E-Bike before, but I’m very impressed with this one. I’m a pretty big guy, about 6’ tall and 280 pounds, but this bike has no issues with me riding it.

The pedal assist is awesome, and you can change the intensity of the assist with the buttons on the left. If you want to just take it easy and let the bike do all the work, you can turn the throttle to your desired speed and just enjoy the ride.

I was so impressed with this bike that I felt compelled to write a review praising it. It’s powerful enough to handle a giant hill leading up to my house, the pedal assist will let you enjoy the ride without making you sweat if you don’t want to, and I can easily ride it given my size. I can’t recommend this bike enough! Everyone I have let ride it has come away just as impressed as I am. Go ahead and buy this bike because you won’t regret it.

Buy this bike!

The bike is beautiful, fun and fast! I would definitely recommend this bike for anyone interested in an ebike.

This bike is so fun!

I have been a road biker my whole life. We are older now. My husband and I wanted an eBike to head to the market etc. I was unsure I wanted to go that route. Then he got me this Trax eBike it is a blast.
I love the suspension, the comfy saddle and the larger battery that allows me the security to go further. It is the perfect commuter bike and pedaling around town for errands. 😊

Great bike

I did a lot of research before purchasing my first e-bike, and based on its power, range, and appearance, I chose this one. I highly recommend this bike - I've ridden it for over 250 miles with no issues.
