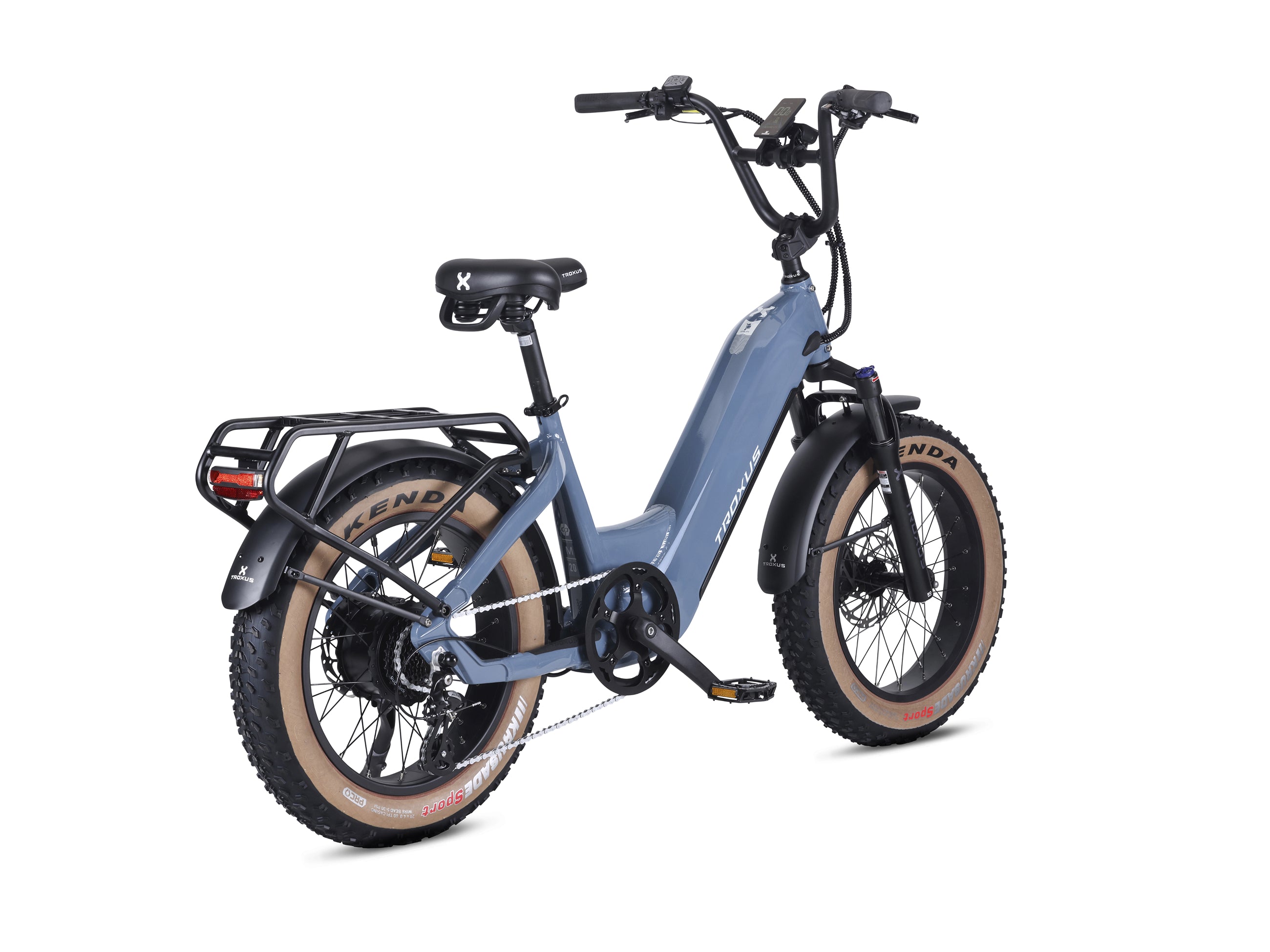

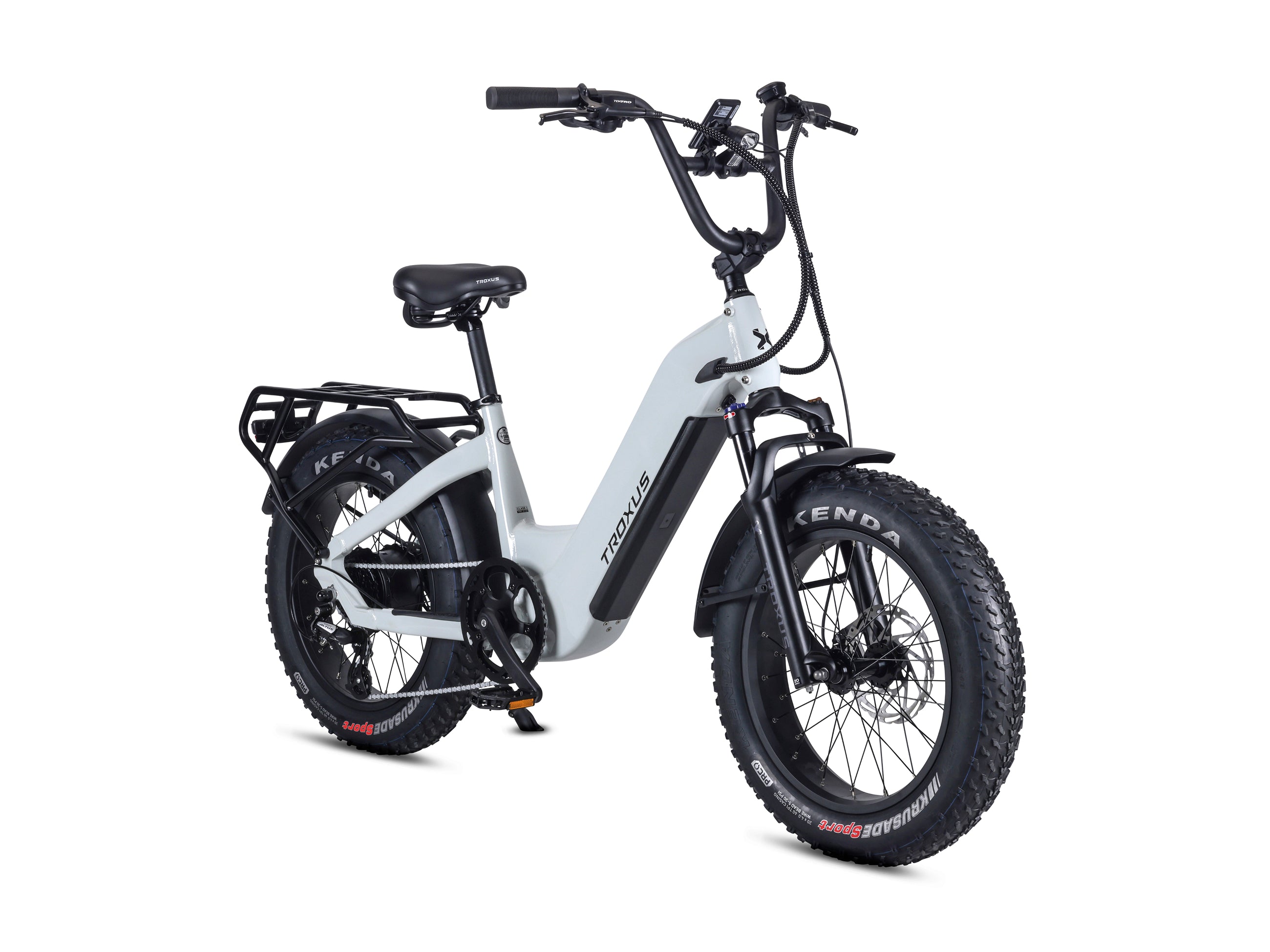

Lynx Plus 20" Fat Tire E-Bike

Name: Lynx Plus 20" Fat Tire E-Bike
Brand: Troxus Mobility
SKU: 10870100192
Price: 2199.0 USD
Availability: InStock
Rating: 4.83 (6 reviews)

$2,199.00 USD

Interest-free installments:

Better than ever, the new Lynx Plus fat tire electric bike, a mini cargo hauler, is ready to roam and explore. Highly maneuverable and nimble, it's perfect for city dwellers, but with 20" fat tires, it can escape the urban jungle to explore nature too. Rear rack capable of carrying up to 100 pounds of cargo or passengers.

Add to compare

Color:Metallic Red

Variant

Pick Up In-Store:

Collect your new e-bike at your nearby authorized Troxus retailer. All e-bikes are professionally assembled and ready to ride.

Process:

Click the "Find It Locally" button.
Select your preferred dealer store.
Choose "Buy Now, Pick Up In Store" and proceed to the next step.
Confirm the order information.
Proceed to checkout and fill in the required checkout details.
Complete your payment.
Visit the store to pick up your e-bikes!

Product Locator by Locally

Our sales team and technicians will answer your questions within 1-2 business days. Our goal is customer satisfaction. We will do our best to understand and meet our customer's requirements at all times.

Available:
Phone: Mon-Fri 9am-5pm PT
Online Chat: Mon-Fri 9am-5pm PT

	Address: 2485 Coral St Vista CA, 92081, United States
	Pre-/After-sales: support@troxusmobility.com Dealer: partner@troxusmobility.com Amazon: amazon@troxusmobility.com Cooperation Inquiries: pr@troxusmobility.com
	Phone No:888-905-8243

28 MPH

Max Speed

SHTF: Don't get Caught on Foot

Survival Dispatch

URBAN SURVIVAL | Cyberattack Reconnaissance

Survival Dispatch

ebike updates | My Current eBike Inventory

eBike Reviews & Adventures

Best eBike Sensor To Choose - EXPLAINED

eBike Reviews & Adventures

Small But Mighty!

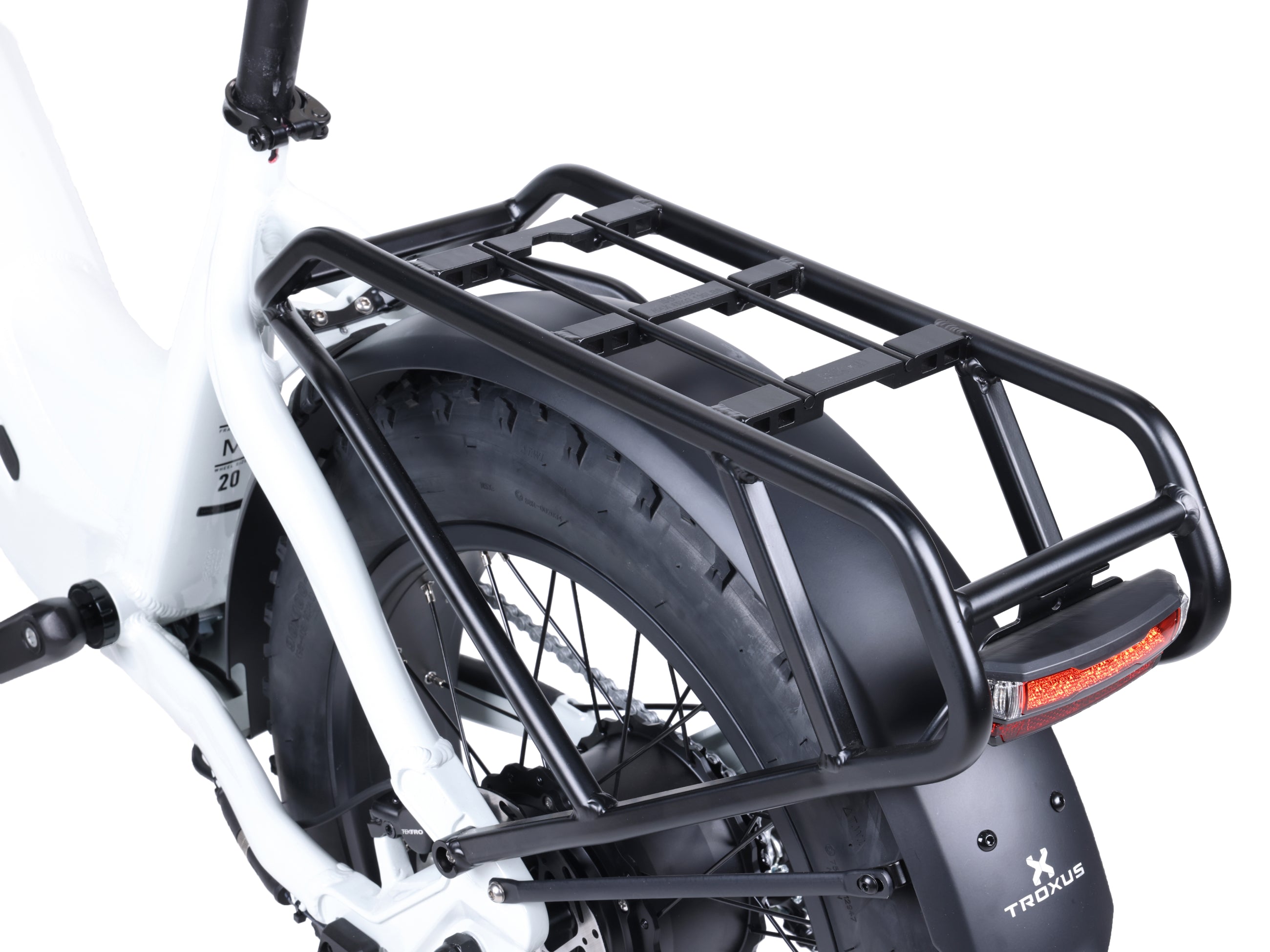

Mini cargo hauler with 400 pounds of load carrying capacity with its ultra strong semi-integrated rear rack. Rear rack capable of carrying up to 100 pounds of cargo or passengers.

Power To Climb And Roam

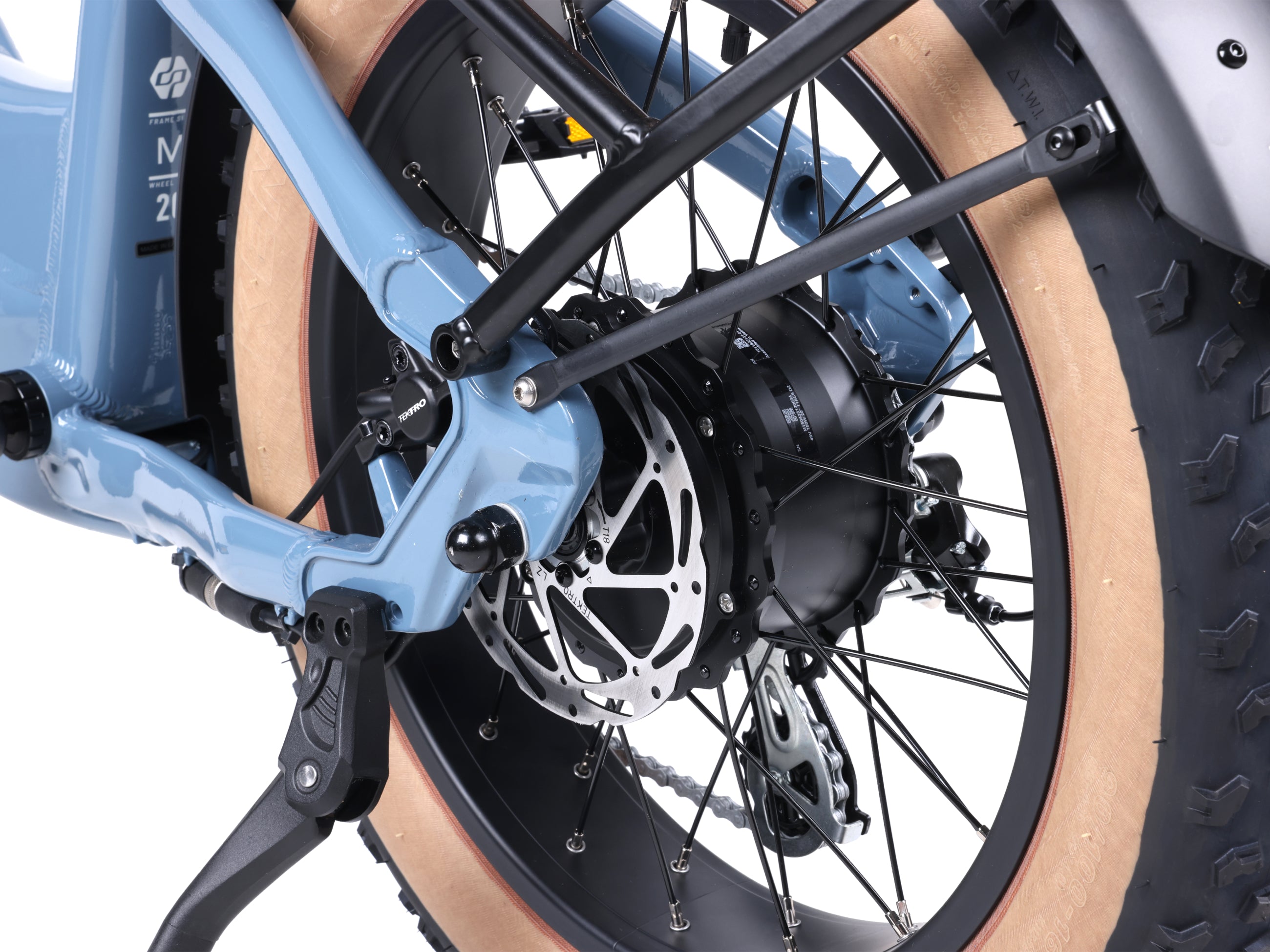

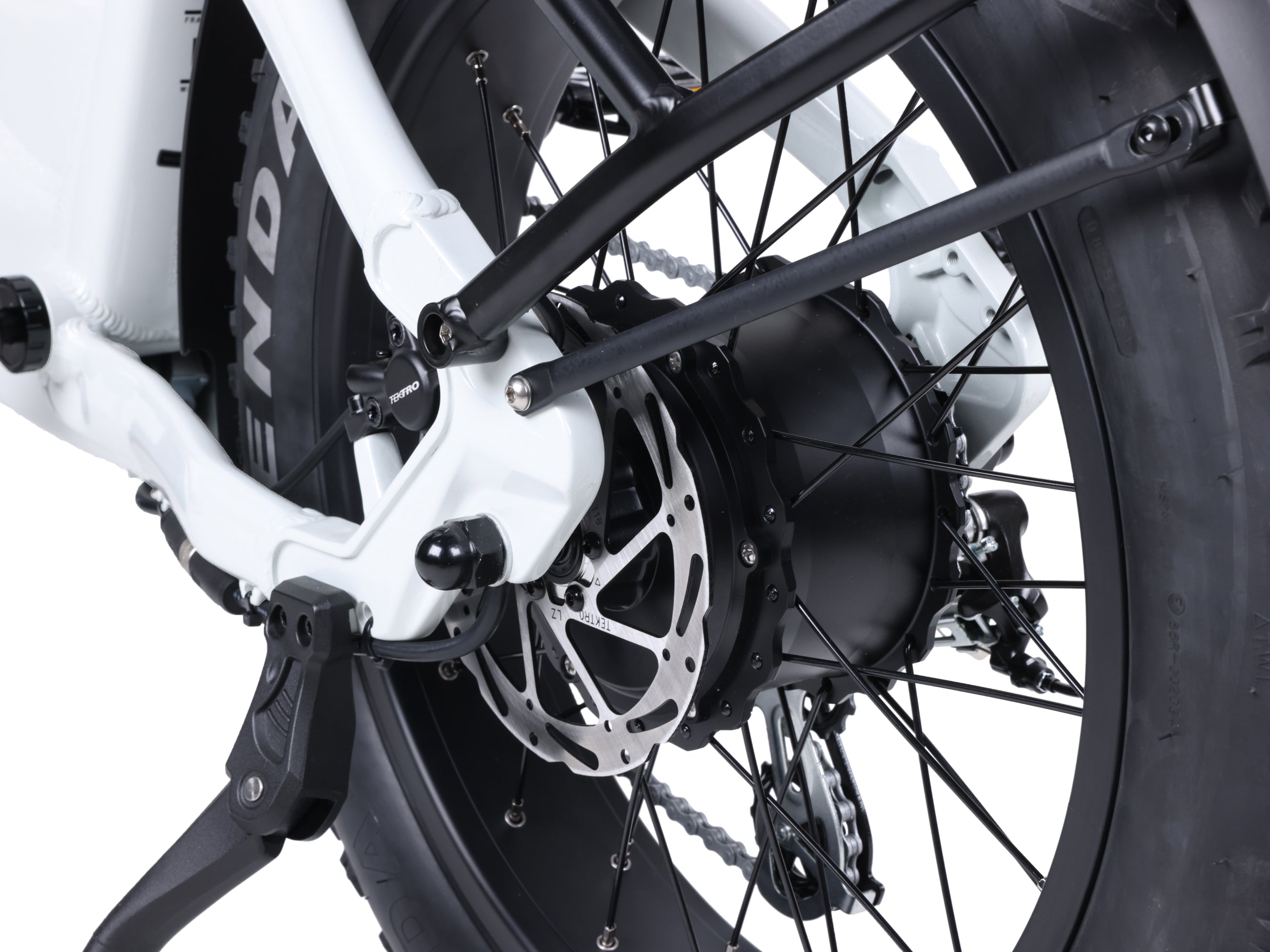

Bafang® 750 Watt (sustained) hub-drive motor with exceptional 86Nm torque to get up the steepest hills.

Safety And Reliability Built In

UL-2849 certified with 960 Wh long range battery capacity for all day fun.

Control, Convenience, And Safety

Bluetooth color display with integrated lights, turn signals, and switchable between torque and cadence sensors.

6061 Aluminum Step-Thru Frame

Lightweight frame with easy access for a wide range of rider sizes.

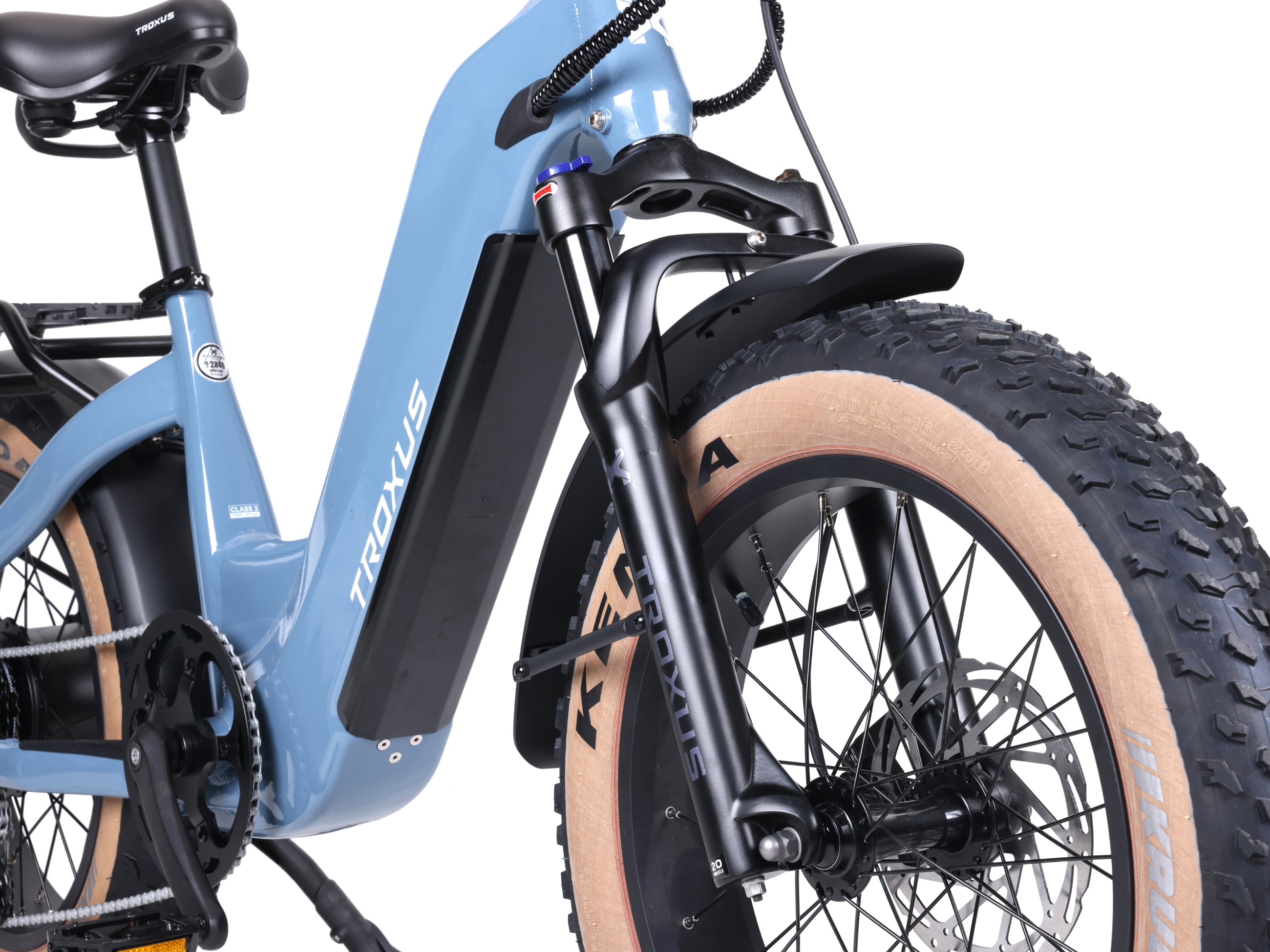

Suspension Fork

80mm of front suspension improves both comfort and control on rough surfaces.

960Wh / 48V / 20Ah Battery

Long range battery with Samsung® cells for all day adventures and range of up to 90 miles on a single charge.

Shimano® 8-Speed Shifting

Never miss a shift and always have the gear you need to match your riding needs and terrain.

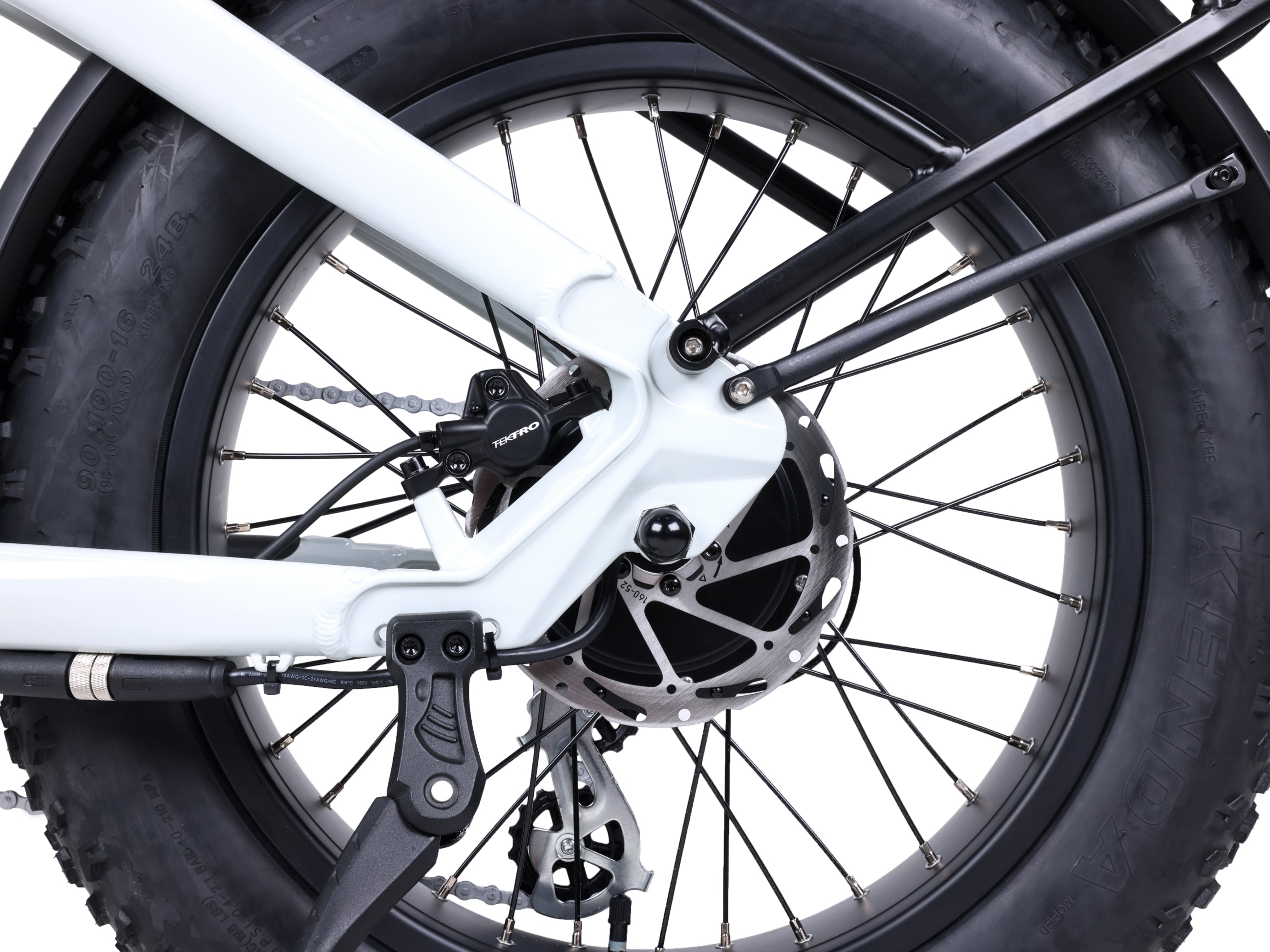

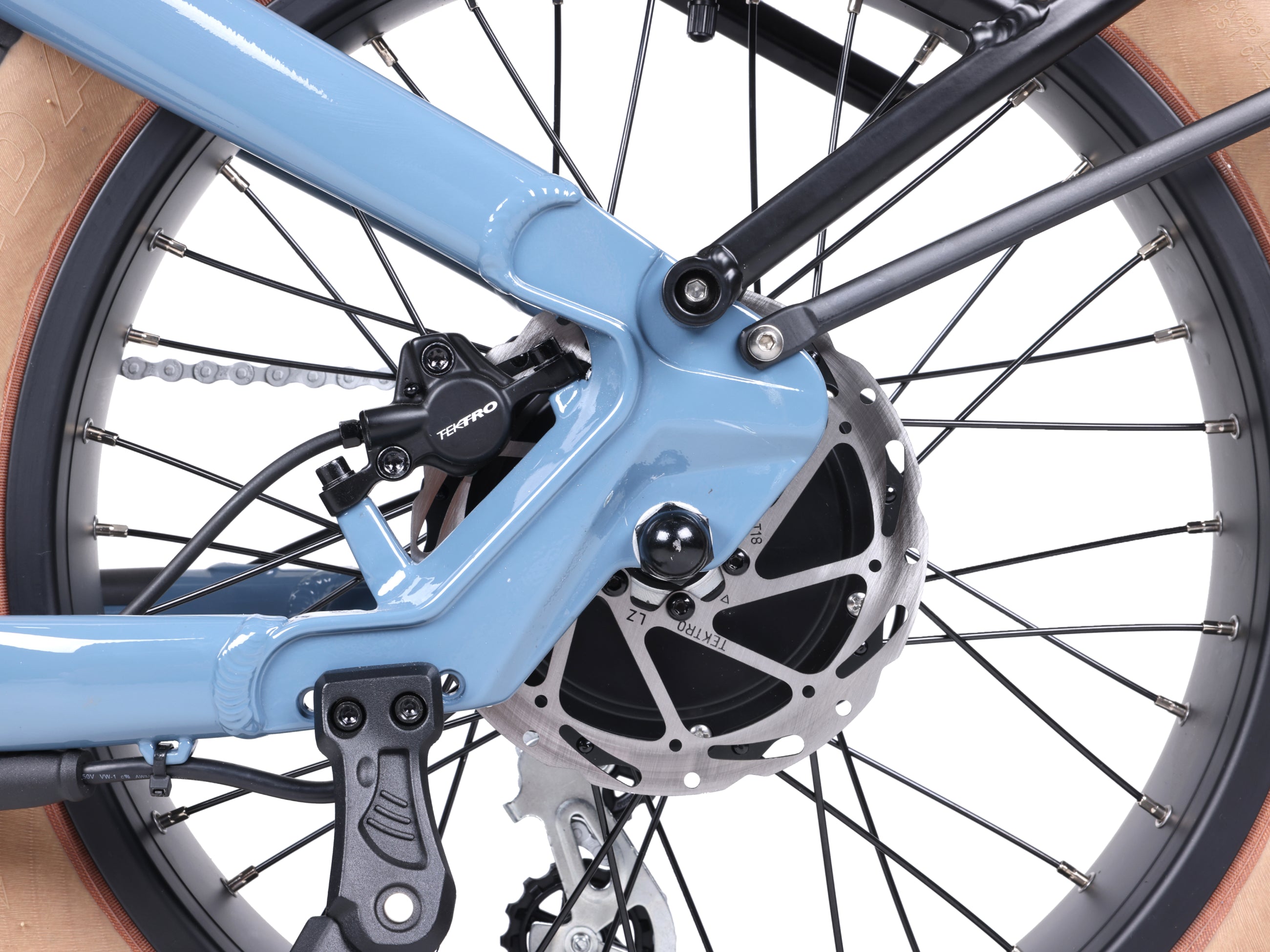

Tektro® Hydraulic Ddisc Brakes

Excellent stopping power and modulation for increased control and safety.

Kenda® Krusade 20" x 4" Tires

Kenda®'s puncture resistant Krusade tires are perfect for paved urban jungles, as well as sand, dirt, and rugged terrain.

Integrated Lighting

Integrated lighting system with front and rear lights, as well as turn signals - bonus daytime four-way flashing setting for increased safety in urban environments.

Still undecided? Take it for a test ride!

book a test ride

Motor

Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque

Battery

UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

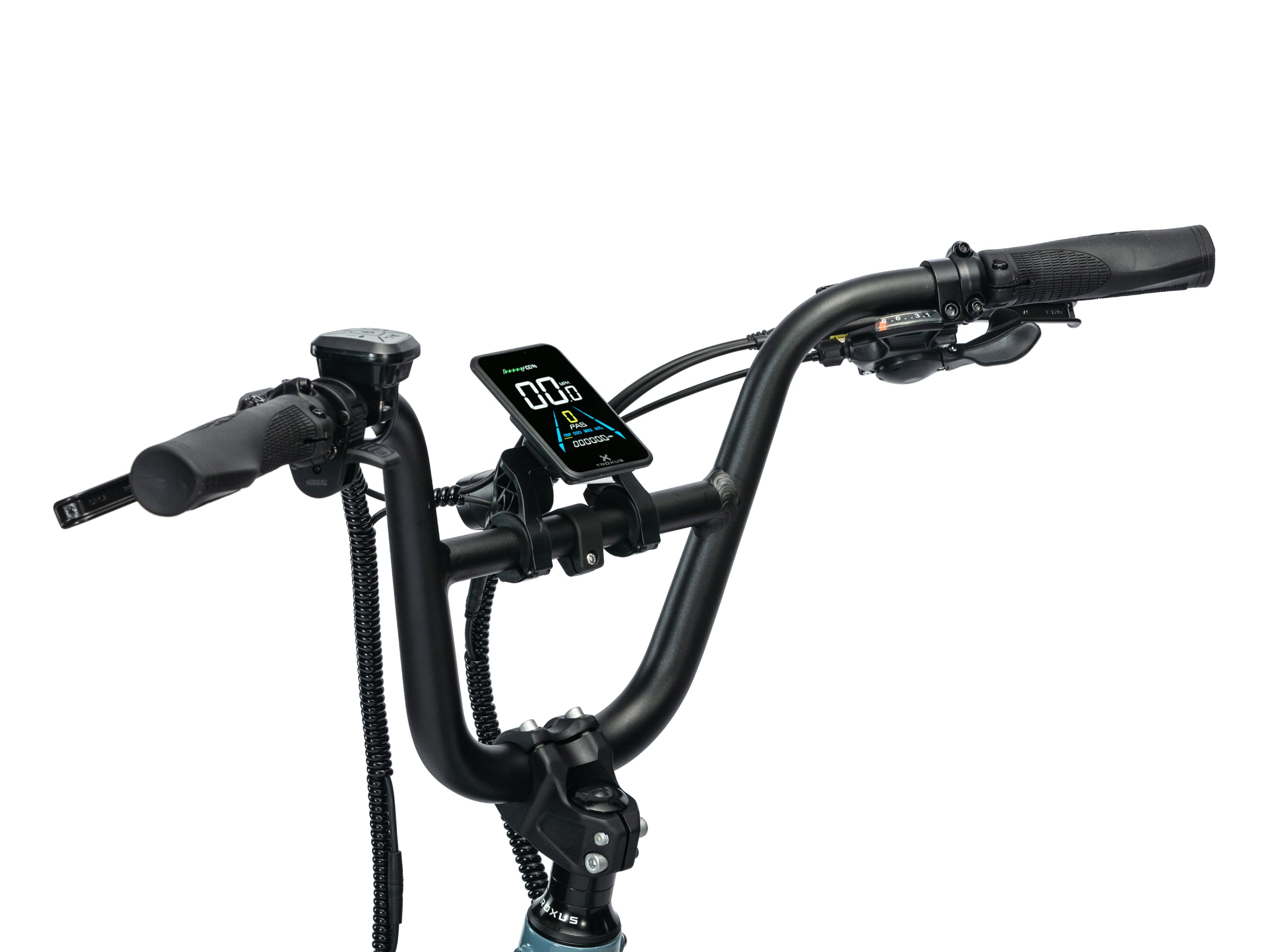

Display

Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging

Throttle

Thumb Throttle on Handlebar

Sensor

Switchable Torque And Cadence Sensor Modes

Frame

6061-T6 Aluminum Step-Thru Frame

Fork

Front Suspension Fork, 80mm Travel

Chain

KMC® 1/2"x3/32"

Crankset

Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm

Rear Derailleur

Shimano® RD-M310-L, Altus, 8-Speed

Max Speed

Up To 20 MPH on Throttle / 28 MPH on Pedal Assist

Range

Up To 90 Miles Per Charge

Weight Limit

Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs

Net Weight

77.2 lbs

Rack

Alloy / Front & Integrated Rear Models

Recommend Height

Size

One Size Fits Most

Frame Size

Universal

Wheel Size

20"x4.0"

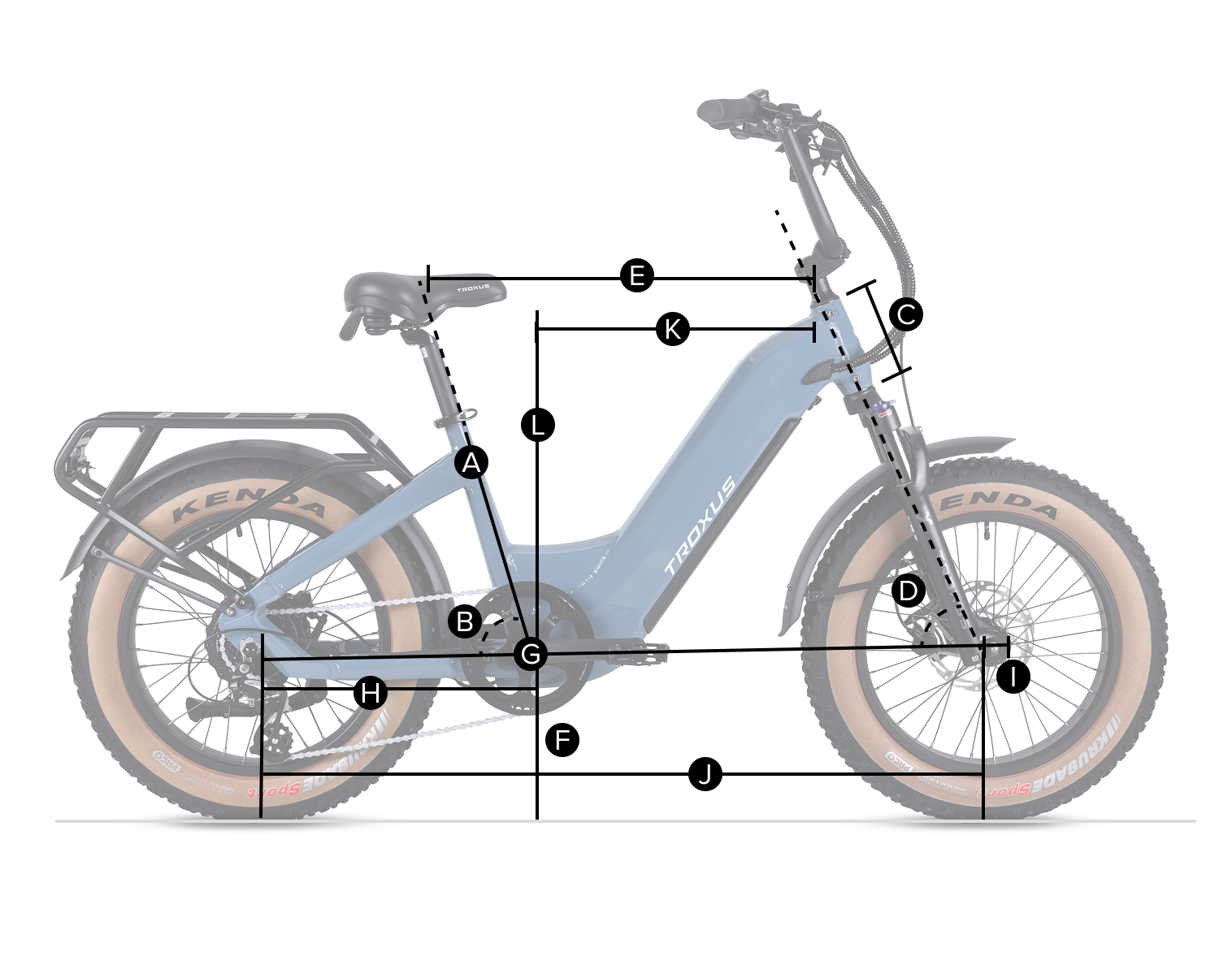

A - Seat Tube Length

375

B - Seat Tube Angle

71˚

C - Head Tube Length

145

Reference

Manual - Lynx Plus

Great purchase and very good quality

Bike is exactly as described and is very fun to ride. Built well and easy to use! Highly recommend

I love my Bike!!

I shopped awhile and tried a couple other bikes before I decided on my Troxus Lynx Plus. I am so happy with my decision. It’s a great bike!!

Fast speed

This bike goes really fast and just feels like riding a car

Fun bike, solid feel

Easy to assemble. It did arrive with a scratch on the front fender and there is a rubber flap that cannot be closed on the left handlebar controller. Does not affect operation, just a bit annoying. Love the responsive feel of the bike when riding. This is my first ebike and I am very happy with it.

Great Bike, Bad Display

The Troxus Lynx Plus is an excellent e-bike. I have ridden it 400 miles in 3 months. I’m a 5’2” woman and it fits me just right. The option of cadence or torque mode is great. I love the red color, the size, the power, the ease to operate, the gears, the hydraulic brakes, the tires, and the battery percent display. I added a suspension seat post, so it is very comfortable. In cadence and torque, riding mostly in PA 3-4, I have been getting 50-60 miles per charge.
The display is the only thing about this bike that I do not like! Here are the reasons:
1. It needs to be much larger. I don’t wear my reading glasses when I ride my bike, so I can’t see the tiny numbers on the very small screen.
2. The Personalized Parameter Settings menu is very limited. I would like to be able to adjust each pedal assist level to the speed I want it to go. You can choose how many levels you want to use, but you cannot set each assist level. That is very irritating! Also, I want the throttle to go 20 mph, not 19.5 mph.
3. A password should be required for a full reset. I was trying to turn off the blinker and somehow pressed the plus button with it. That did a total factory reset and put the main odometer back to 0.
4. There is no option to see how many KiloWatts you are using while riding.
I ride with my husband, who has a Troxus Explorer. (He won’t upgrade to the Explorer Plus because of the display on it) We bought Sena Rumba Bluetooth helmets so we can talk to each other easily while we ride. I had the Lynx for a while and then I upgraded to the Lynx Plus. It was definitely worth the upgrade because of the many new features. We have had so much fun riding our Troxus e-bikes.
