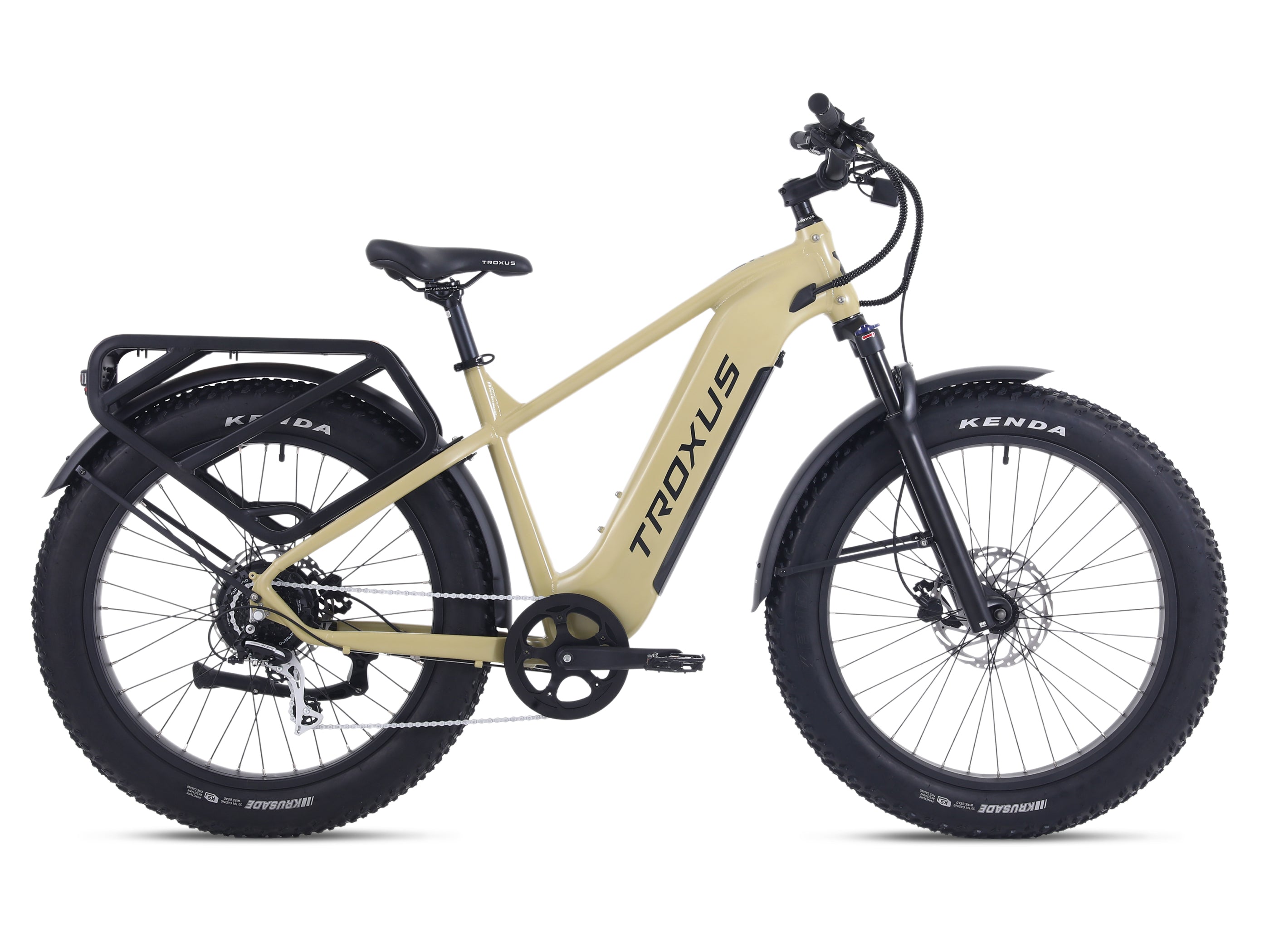

Explorer Plus Step Over E-Bike

*Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.
Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque

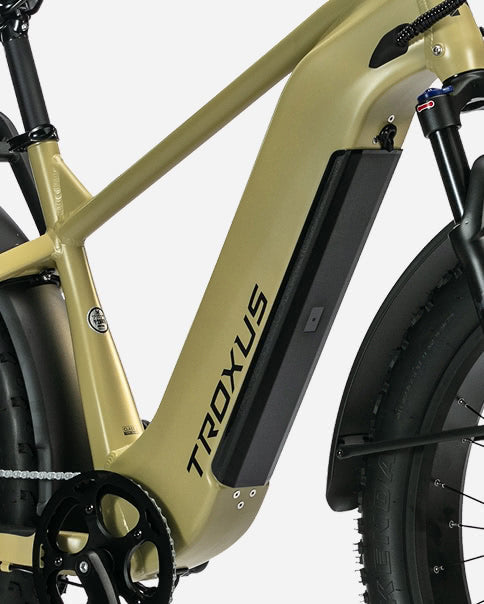

UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
Thumb Throttle on Handlebar
Switchable Torque And Cadence Sensor Modes
0~5 Level Pedal Assist
3A / 100-240V Input / 54.6V Output

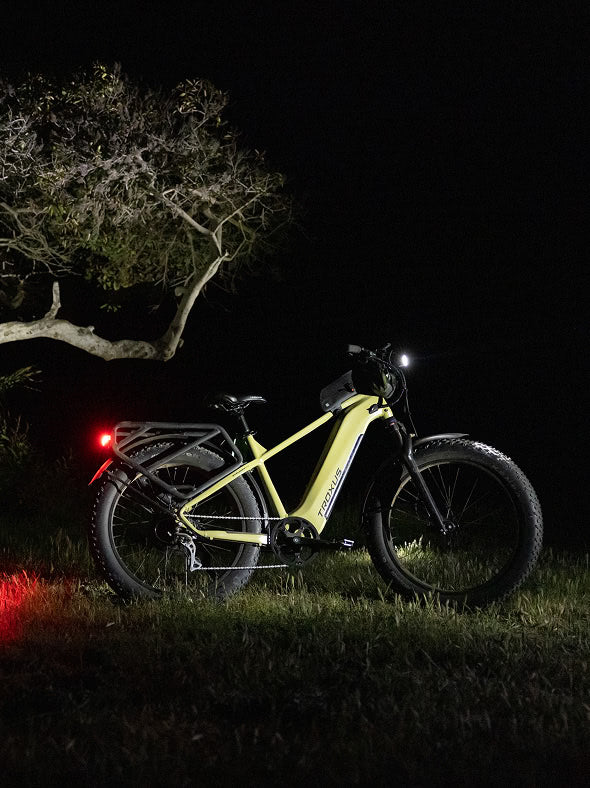

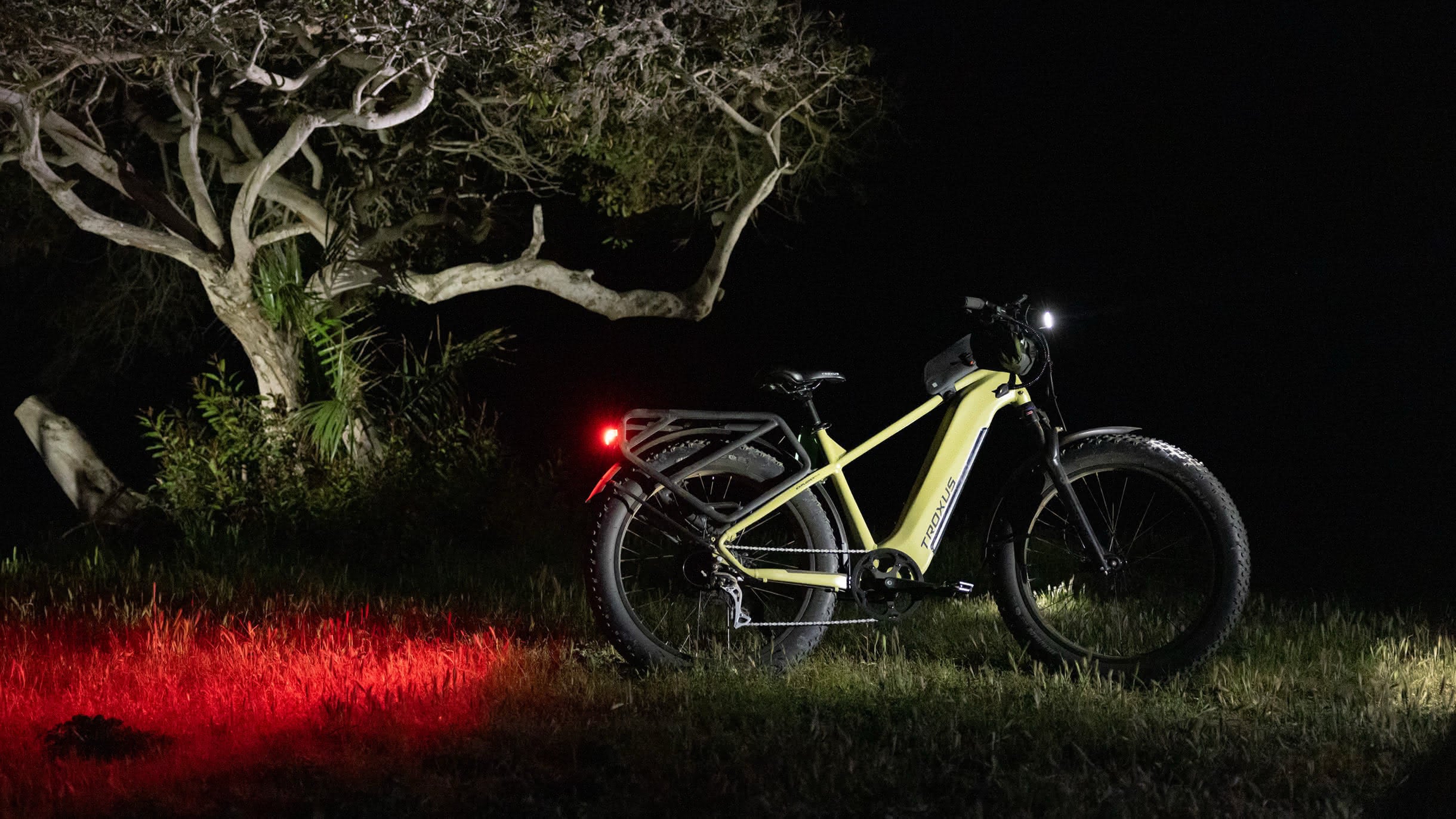

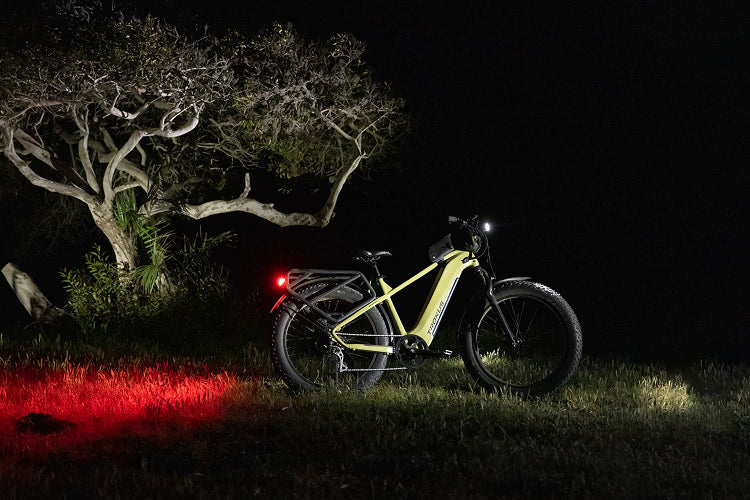

80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
48Vx22A/6V

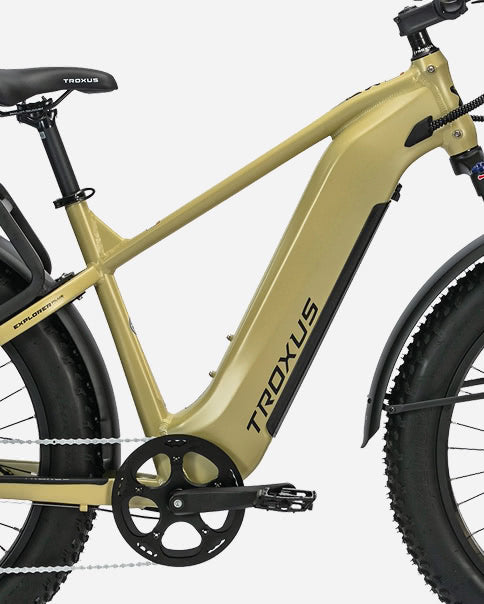

6061-T6 Aluminum Step-Over Frame

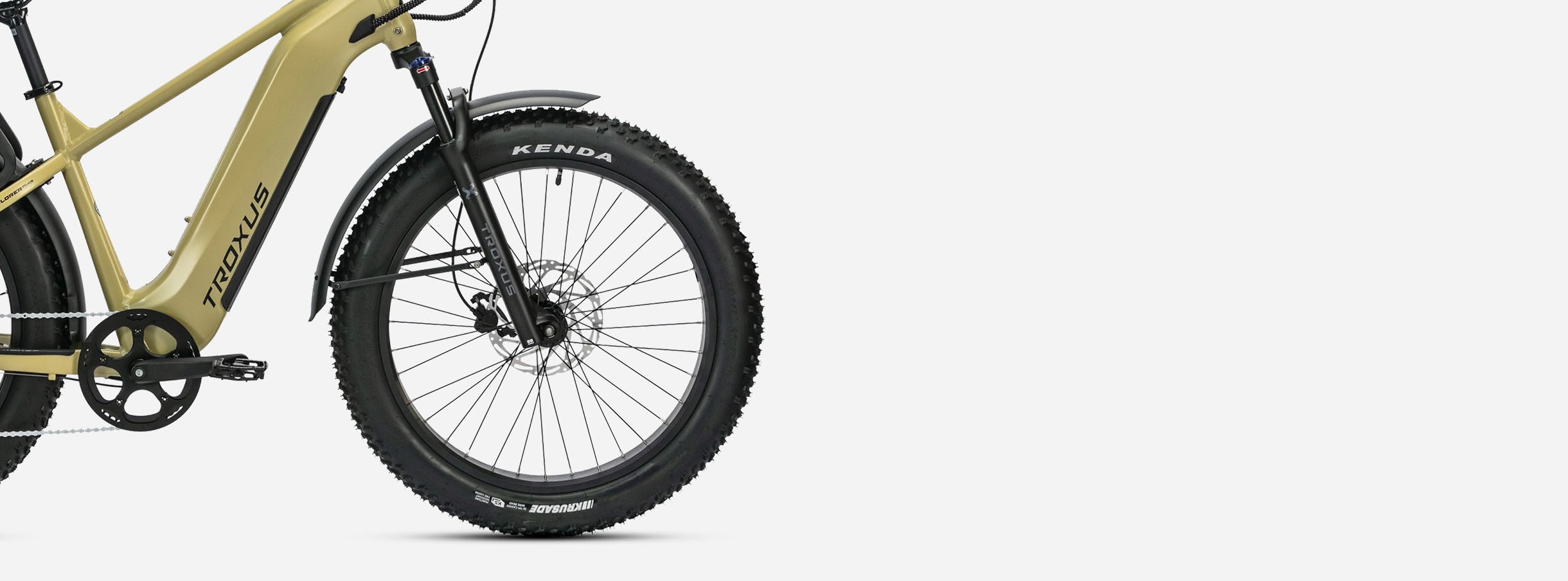

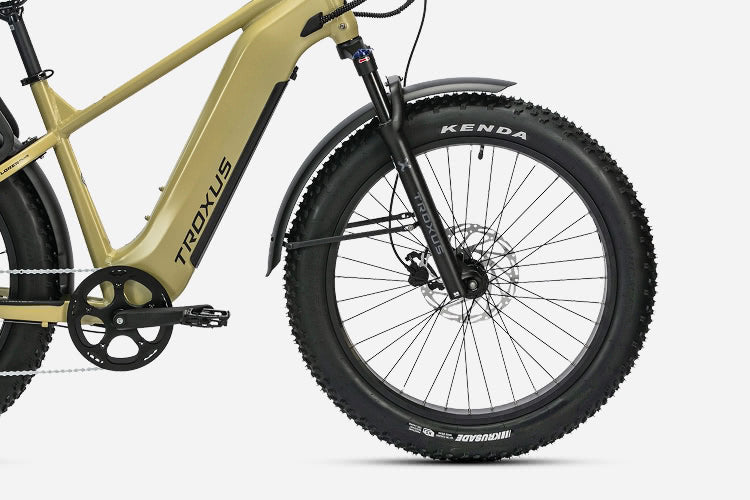

Front Suspension Fork, 90mm Travel
KMC® 1/2"x3/32"
Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Shimano® RD-M310-L, Altus, 8-Speed
Shimano® 8-Speed, 12-32T
Shimano® 8-Speed
Square Taper Sealed Bearings, Torque & Cadence Sensors Included
KENDA® 26"x4.0", w/ Anti-Puncture K-Shield
Alloy, 36H, 135mm, 3/8" Axle

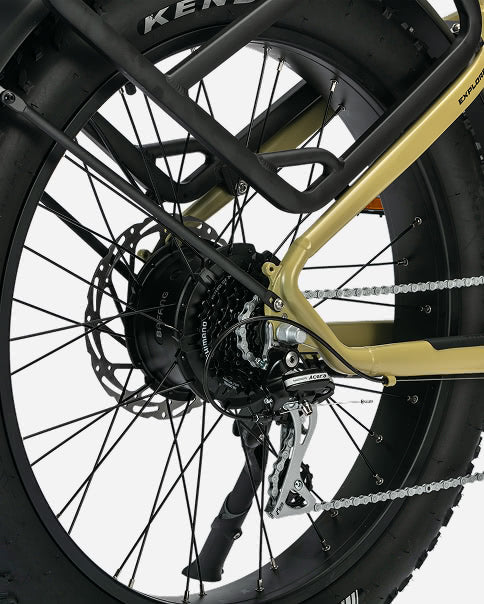

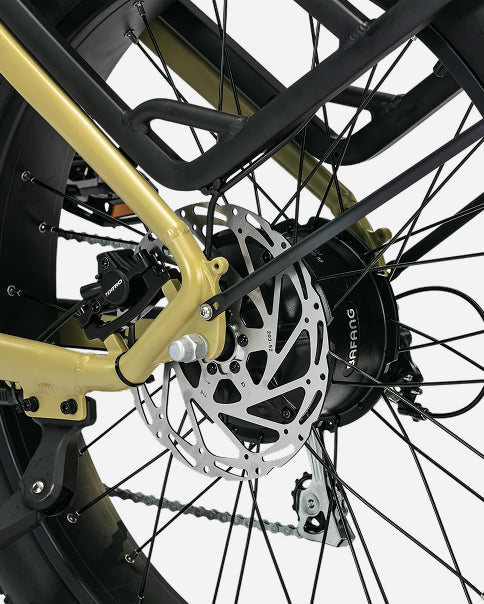

Bafang® 48V 750W/ 28 MPH. 86Nm
Alloy Single Wall Front / Double Wall Rear, 36H, 26"x4.0", w/ Eyelets
Stainless 13G. Front / 12G. Rear

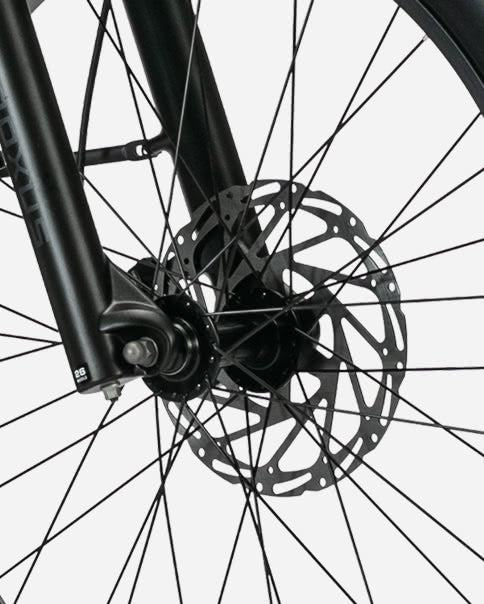

Tektro® Hydraulic, w/ Brake Sensors
203mm / 203mm
Troxus Comfort
Zoom® Alloy, 30.9x350mm, Adjustable
Alloy, 35mm w/ Quick Release
Zoom® Alloy, Threadless, 1-1/8", Ext. 75mm, 28.6mm, 7-Degree Rise
Zoom® Alloy 31.8mmx700mm Wide
Ergonomic Comfort
9/16″ Alloy Platform
Threadless, Locking Internal 1-1/8"
Up To 20 MPH on Throttle / 28 MPH on Pedal Assist
Up To 90 Miles Per Charge
Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
83.8 lbs

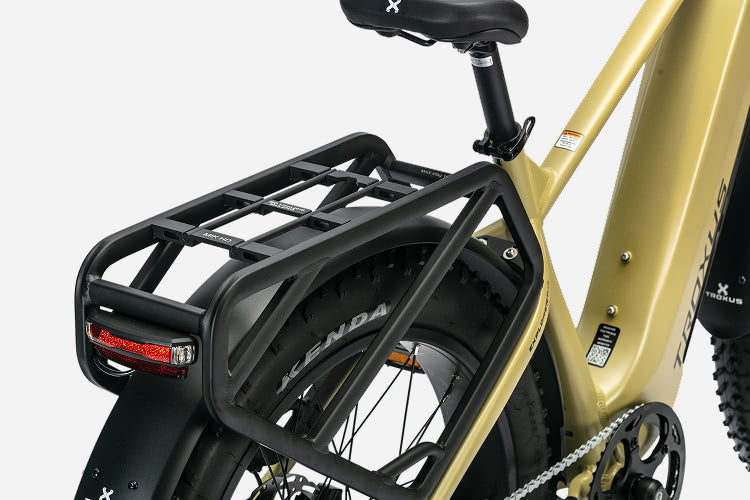

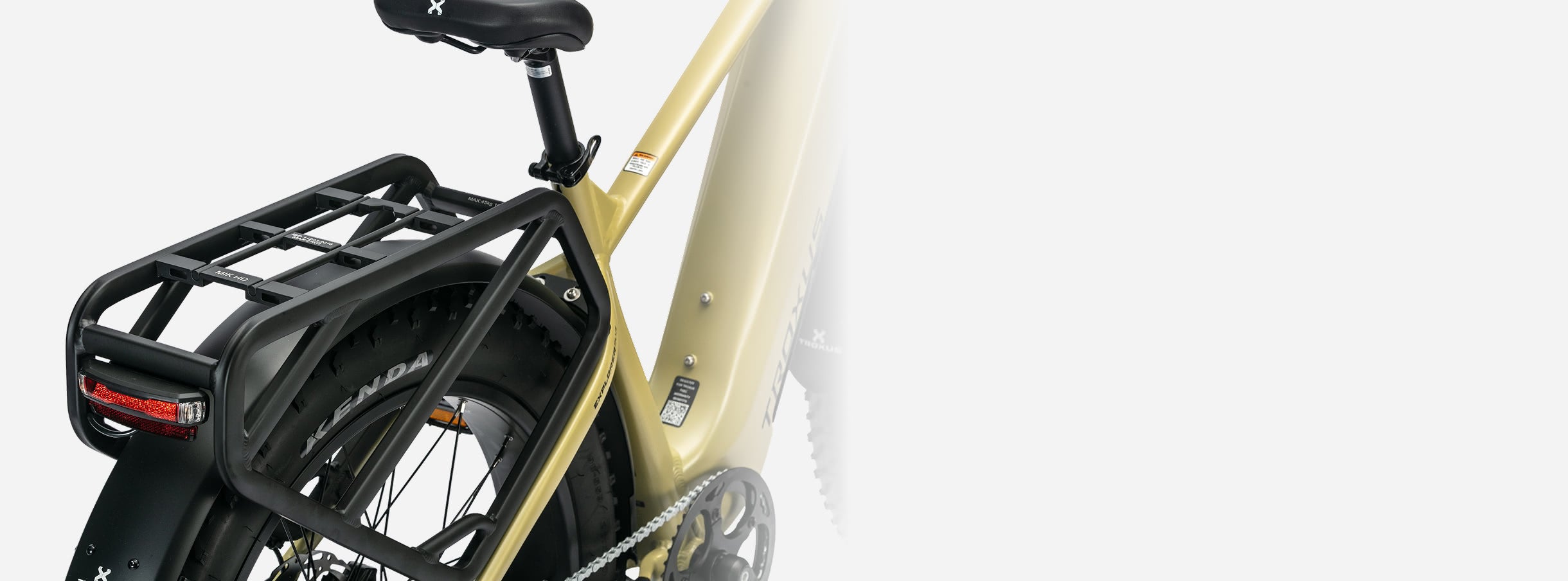

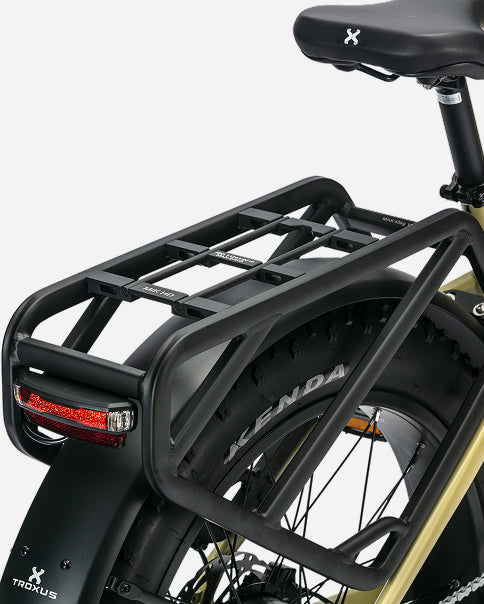

Semi-Integrated Alloy Rear Model
Alloy, 27.5"x4.0", Full coverage
Adjustable Side Kickstand
Above All Accessories Are Included.
5'8" - 6'4"

Step-Over
Large / 20"
26x4.0"
500
71.5°
160
68°
625
305
70
490
46
1173
387
691
90
525
