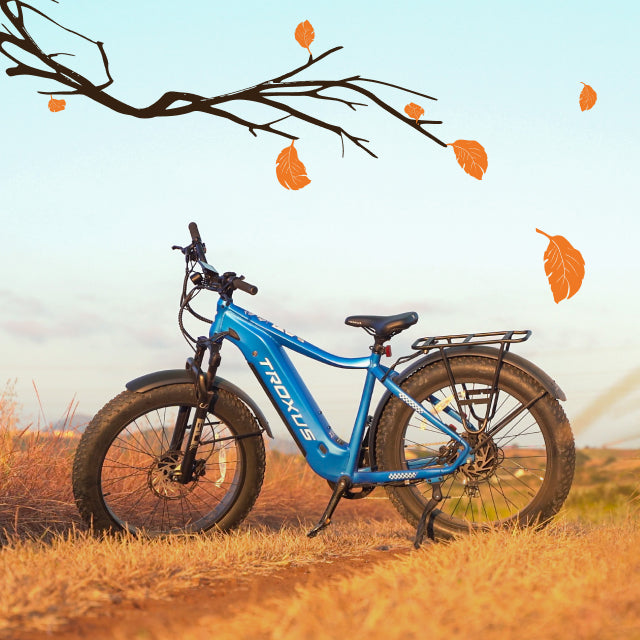

Explorer Step Over 26" E-bike

Name: Explorer Step Over 26" E-bike
Brand: Troxus Mobility
SKU: 10870100007
Price: 1599.0 USD
Availability: InStock
Rating: 4.95 (119 reviews)

$1,599.00 USD $1,999.00 USD

Save $400

Interest-free installments:

Color:Blue

Pack:Explorer Step Over

Stock:Ready to ship

Variant

Product Locator by Locally

Our sales team and technicians will answer your questions within 1-2 business days. Our goal is customer satisfaction. We will do our best to understand and meet our customer's requirements at all times.

Available:
Phone: Mon-Fri 9am-5pm PT
Online Chat: Mon-Fri 9am-5pm PT

	Address: 2485 Coral St Vista CA, 92081, United States
	Pre-/After-sales: support@troxusmobility.com Dealer: partner@troxusmobility.com Amazon: amazon@troxusmobility.com Cooperation Inquiries: pr@troxusmobility.com
	Phone No:888-905-8243

Powerful Bafang 750W Motor

Troxus Explorer series fat tire E-bikes are equipped with the globally recognized BAFANG hub motor. This powerful 750W brushless motor efficiently delivers speeds up to 28MPH with pedal assist. You can enjoy your explorations with increased stability and smoothness throughout the rear hub’s power range.

48V 20A Lithium-ion Battery with SAMSUNG Cells

The Troxus Explorer series supports your long-distance needs with a high capacity battery. SAMSUNG lithium battery cells provide 60+ miles of range per charge, allowing you to discover more and ride further. These batteries are rigorously tested and are waterproof, so that they can reliably perform in any kind of weather- rain or shine.

Thermal Test

Impact Test

Overcharge Test

Forced Discharge Test

Shock Test

Vibration Test

26" x 4.0" Kenda All-Terrain Fat Tires reach compliant

Troxus Explorer uses specifically designed e-bike fat tires made of extra-elastic rubber with lower pressure for great shock and vibration absorbency. They also provide excellent grip and easily shed mud, dirt, and sand. No matter whether you are riding in the Rocky Mountains or through the soft leafy litter of Yellowstone Park, or in which weather, you can ride without hesitation.

Tektro Hydraulic Disc Brakes

With a dual-diameter opposed piston design, these powerful hydraulic disc brakes have an increased contact area, providing excellent control and confidence in all conditions.

High-end Quality Components

Aluminum Alloy Frame

Lightweight and durable 6061 aluminum frame.

SHIMANO 8 Speed Gear Shift System

The Shimano 8 speed cassette means you can shift to larger gears for uphill riding and smaller gears for higher speeds. Combined with Pedal Assist, you can easily adjust the right speed for your ride.

Smart Display

With Explorer Smart Display you can easily check your stats like Speed, Battery, Assistance level, and Trip Distance. The large backlit LCD display lets you check the info at a glance so you can keep your eyes on the road.

26" Kenda Fat Tires

The Kenda tire casings are made with a layer of aramid and ceramic particles built in under the tread area and along the sidewalls. This material forms a defensive barrier that can provide effective protection against punctures from glass and other small materials. Not only are they durable but they look great too!

Integrated Equipment

The Troxus electric bike is equipped with a rear rack, so that your bike can carry your cargo easily. What’s more, you can install a child seat and enjoy riding with your children.

Samsung Battery

A powerful motor needs a great battery and the Samsung 48V/20Ah battery is ready to deliver. It provides an estimated range of up to 60+ miles. This battery is also easily removable and very portable - you can take it with you on mid-ride stops, and thanks to its USB port it can be used to charge your phone and accessories.

Best Fit For Height: 5'4"-6'10"

REAL WORLD TESTING

ON THROTTLE

SPEED:

Up to 20MPH

RANGE:

36 Miles
Without Pedaling

ON PEDAL ASSIST

PAS LEVEL

SPEED:10MPH

RANGE:65Miles

SPEED:15MPH

RANGE:60Miles

SPEED:20MPH

RANGE:38Miles

SPEED:23MPH

RANGE:36Miles

SPEED:28MPH

RANGE:34Miles

Speed & Range testing was calculated using a rider weight of 180lbs on 80% flat terrain

SPECIFICATION

MOTOR

Bafang 48V 750W Hub motor

THROTTLE

Throttle on demand-throttle from a complete stop

DISPLAY

L401 LCD

SPEED

Up to 20MPH on throttle and up to 28MPH on Pedal Assist

BATTERY

Removable Internal Lithium-ion 48V, 20Ah (960Wh)with Samsung cells

SENSORS

Speed Sensor

PEDAL ASSIST

5 Levels

CHARGER

54.6V 3A

RANGE

30-62 Miles

FRAME

6061 Aluminium Alloy

WEIGHT

Net Weight: 83.78LB

Gross Weight: 103.62LB

PEDALS

9/16" Alloy Platform

FORK

Aluminum Alloy, Suspension Fork

WEIGHT LIMIT

Standard Weight Limit 275LB

Maximum Weight Limit 353LB

KICKSTAND

Included, Rear Mount

BOTTOM BRACKET

Square Taper, Sealed

CRANKSET

170mm w/46T

REAR DERAILLEUR

Shimano 8 speed

CASSETTE

12-32T, 8 Speed Cassette

SHIFT LEVER

8 Speed

BRAKES

Tektro Hydraulic Disc Brake, 180mm Rotors

CHAIN

KMC Z8.3

RIM

Front: Single Wall Aluminum 36h
Rear: Double Wall Aluminum 36h

SPOKES

Front wheel: black stainless 13 Gauge
Rear wheel: black stainless 12 Gauge

TUBES

Butyl Rubber

HUBS

Nutted Front and Rear

TIRES

26" x 4.0" Tires

SADDLE

Troxus

SEATPOST

Forged Alloy, 30.9*350mm, 2 Bolt Clamp

STEM

Threadless, 28.6mm, 7 Degree Rise

SEAT CLAMP

Quick Release

HANDLEBARS

Aluminum 31.8mm, 700mm

HEADSET

GINEYEA Sealed Bearing Headset

GRIPS

Ergonomic Comfort

PACKAGED

Above all accessories are included

GEOMETRY

Frame Size	Standard (mm)
Wheel size	26"*4.0
A ─ Seat tube	500
B ─ Seat tube angle	71.0°
C ─ Head tube length	160
D ─ Head angle	69°
E ─ Effective top tube	605
F ─ Bottom bracket height	296
G ─ Bottom bracket drop	70
H ─ Chainstay length	490
I ─ Offset	46
J ─ Trail	91.2
K ─ Wheelbase	1159.5
L ─ Standover	714.3
M ─ Frame Reach	405
N ─ Frame Stack	624.6

TROXUS Video

FAQ

Order and Payment
Returns and Refunds
Product/Service-Related

Order and Payment

How long does it take to arrive?

It doesn't take a long time to ship. And different place has different delivery time.

Returns and Refunds

Is it possible to open it and return the e-bike if I don't like it?

Yes, we provide a 15-day return policy and a two-year warranty. If you are not satisfied with the product, you can return it within 15 days. Please NOTE that for a return, it's important to ensure that the original packaging is in good condition and the riding mileage should not exceed 10 miles. For more detailed warranty information, please refer to the product page, or feel free to contact our customer support team for assistance.

Product/Service-Related

What is the battery range of this e-bike?

The battery range varies depending on several factors, but typically, you can travel 30 to 60 miles on a single charge. Please note that riding conditions, speed, and payload can affect the range.

How do I clean/maintain this ebike?

It is recommended to keep the tires inflated, lubricate the chain, and perform periodic brake checks. Additionally, the battery should be charged and stored properly to maintain performance. For more information, you can check out our Help Center.

Do I need a driver's license or registration to ride this e-bike?

In most areas, a driver's license or registration is not required to ride an e-bike, but regulations vary by region. Please check the regulations in your area before making a purchase.

How do I charge the battery?

The battery can be charged by plugging the provided charger into a standard electrical outlet. Charging time depends on the battery capacity and its current state, but typically takes several hours.

Are there accessories available for upgrades or personalization?

Yes, we offer a variety of accessories and upgrade options, such as front baskets, rear racks, lights, locks, and more, to cater to different riders' needs.

Is this E-bike waterproof?

Yes, it is IPX5. But it's not suggested to ride in the rain.

How do I know if this ebike is suitable for me?

You can find information about recommended rider heights on our product details page. Additionally, we offer free test rides at our physical locations. You can find the specific test ride locations on our 'test ride' page.

A Beauty and the beast

We have two Explorers. Incredible engineering from people who have been the automotive industry for decades. This bike is tough, strong and draws attention wherever we ride. It is quick, safe and rides like the wind. Forget about terrain with this one it will go anywhere - we love them!

Awesome ebike

Ordered 2 explorer’s 1 step through in red for the wife and a black step over for my self both of us over 60 years old delivery was great and on time 1 wheel damaged from shipping contacted customer service issue resolved new wheel delivered I can’t say anything about other bikes but these are awesome great riding powerful and fun when we ride always more miles than you think 15 miles is a pleasure and you do get exercise would highly recommend the TROXUS explorer best fun ever riding a bike

Love the bike, it’s a beast!

I’m 59 and feel like a kid, I think I’m close to 70 miles on the bike in about 10 days.
Dirt trails, city streets, parks and even tried it in the bottom of the dry river with no problems.
Having a sight issue with the derailer it seams to not be adjusted correctly.

Great bike

Absolutely love it. Fat tires are super stable.

Impressive

I purchased this bike after seeing it in a few youtube videos, with good reviews. So far it seems to be a great bike and working perfect. I did opt to switch out for an after market seat to provide some room for male components..... Also added additional lighting, rear view mirror, cell phone holder, and lunch box bag over the rear wheel.

The only thing I wish this bike had is a rear suspension, but I think that could be taken care of with after market seat suspension.

All in all I am happy with this bike and would recommend to anyone else looking for an e-bike
